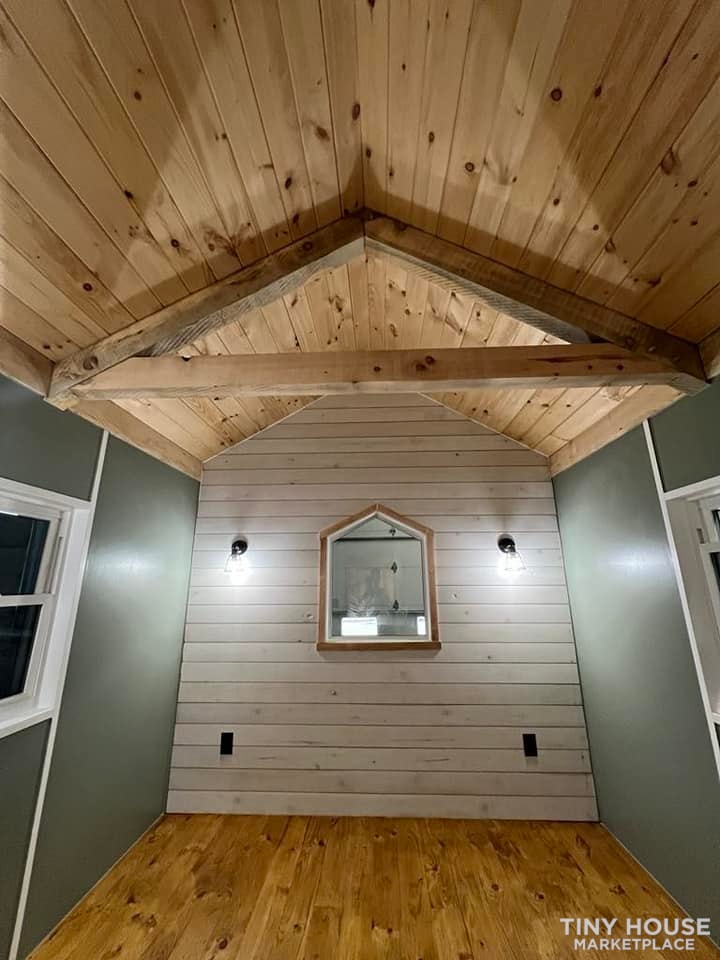

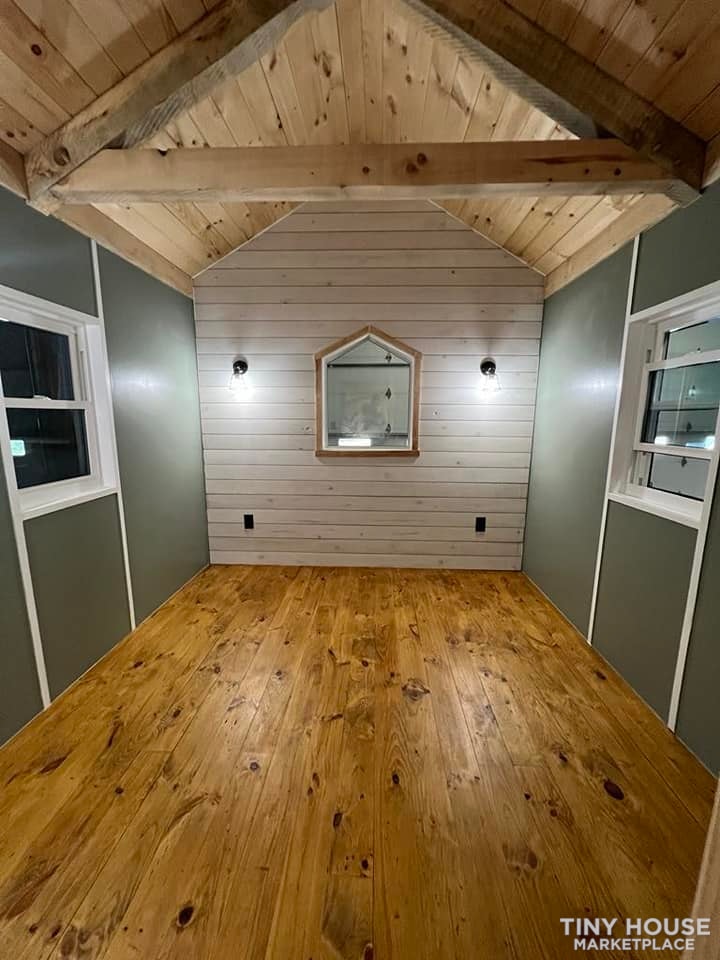

This tiny home has a main floor bedroom with a custom staircase that lead way to two separate sleeping lofts! Details are below
Trailer:

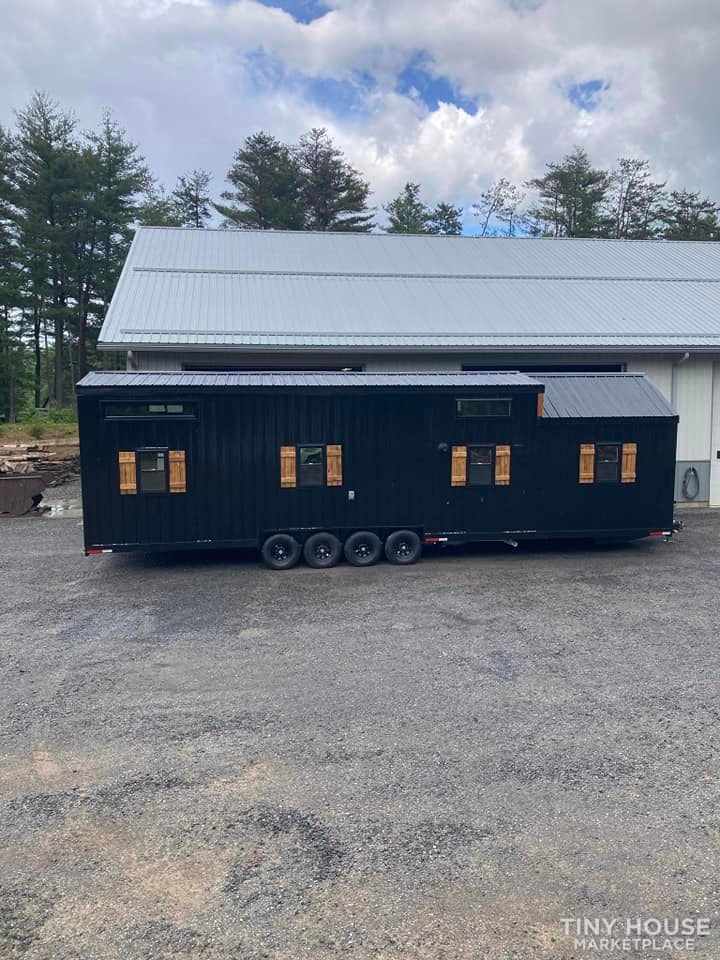

28k Tiny Home Trailer Frame. 10x40. 4 7k axels
Steel floor Joists on 16in Center
4 in closed cell iso board insulation in floor R 7 per inch : 28
One Layer foil faced low e wrap (r10)
1 in lath fastened to joists
2x6 t&g flooring
Bottom of Trailer Completely Steel Plated base
Exterior/Framing:
2x4 studded walls.
R13 Fiberglass insulation
Wrapped in R10 foil faced ⅜ low e wrap R 10. Total of 25

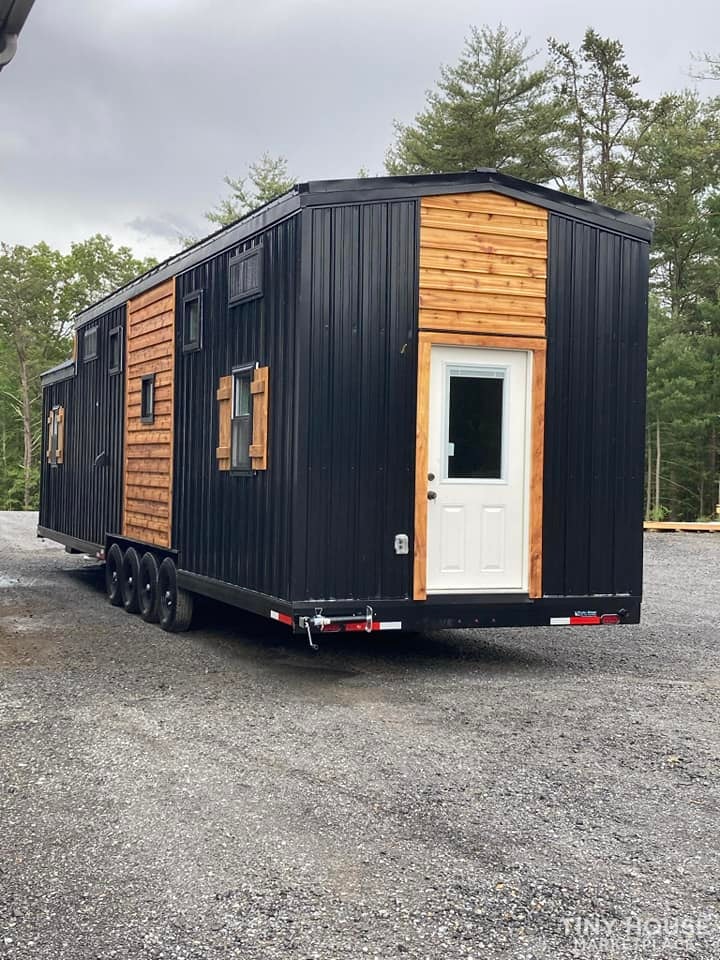

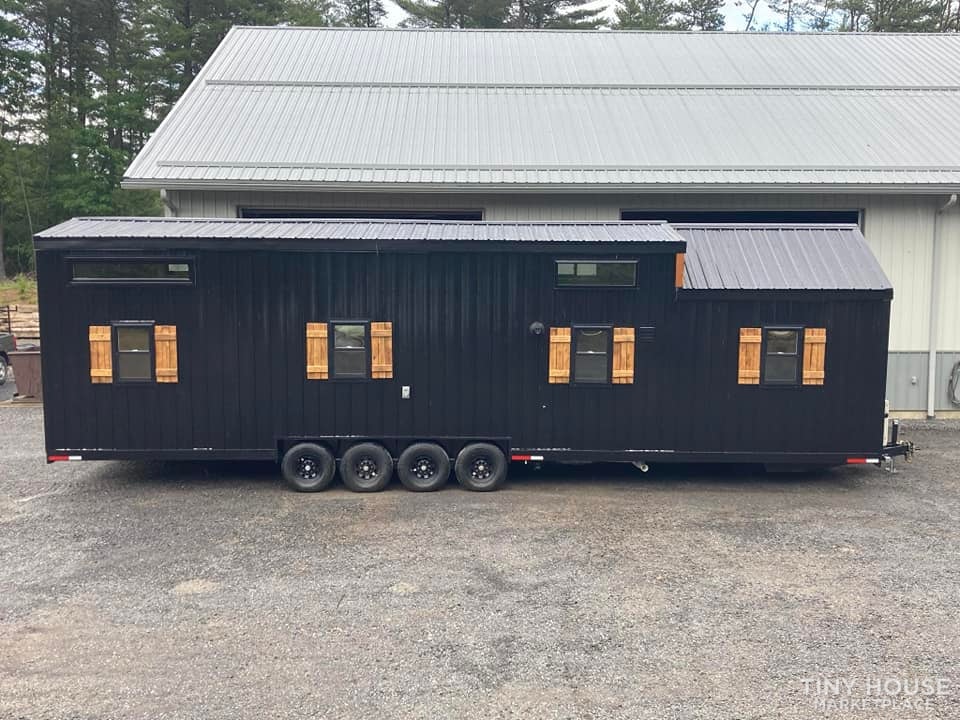

Steel Black Siding (40 yr paint warranty)
32 In Door With Mini Blinds
2x6 tongue and groove floor sanded and finished in Golden Oak
2x6 tongue and groove ceiling 1 in closed cell foam board and ⅜ low e wrap Total of R19
40 yr metal Roof.
Black Double Hung Windows. Low E Argon Filled Double Paned Glass
Cedar Siding Accents on front, and both sides. Finished with oil.
Interior:
2x6 tongue and groove flooring (stained and poly)
¾ White Pine Shiplap on Walls (Painted White

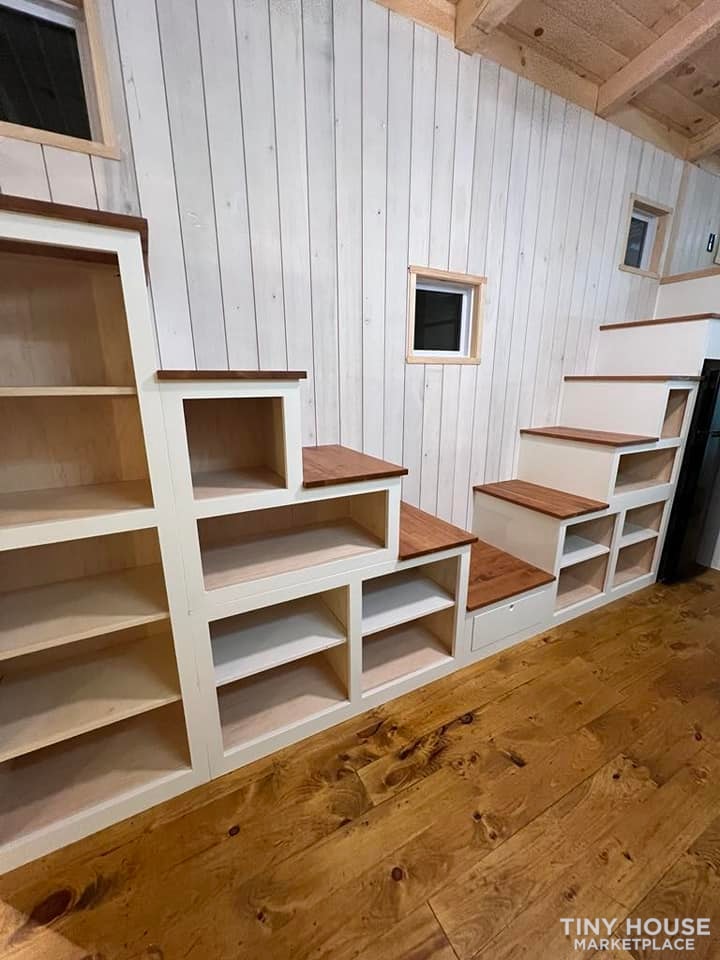

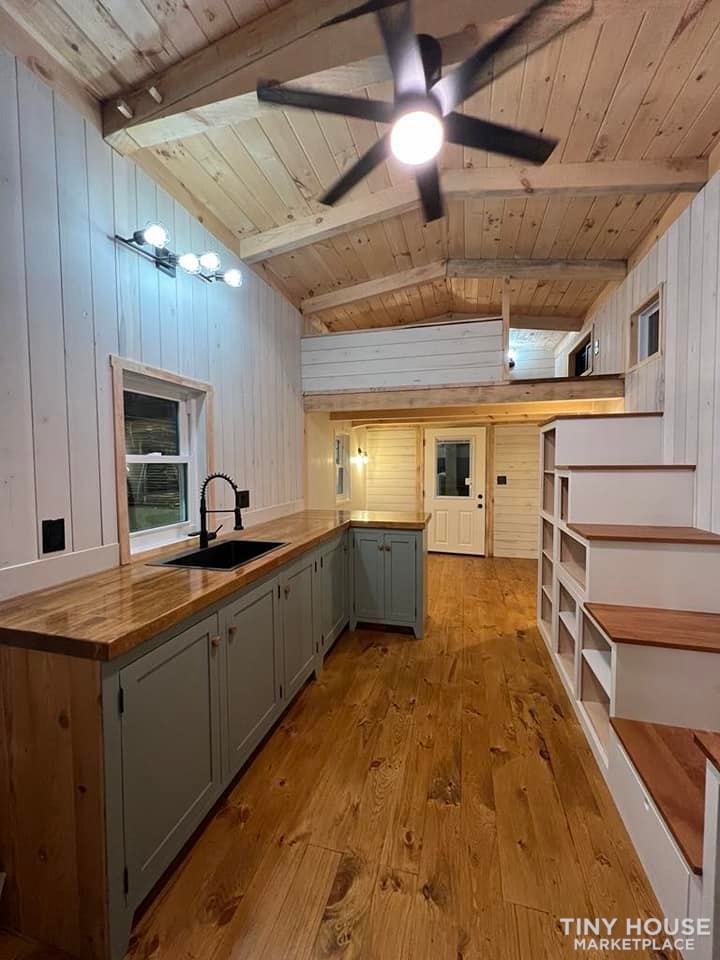

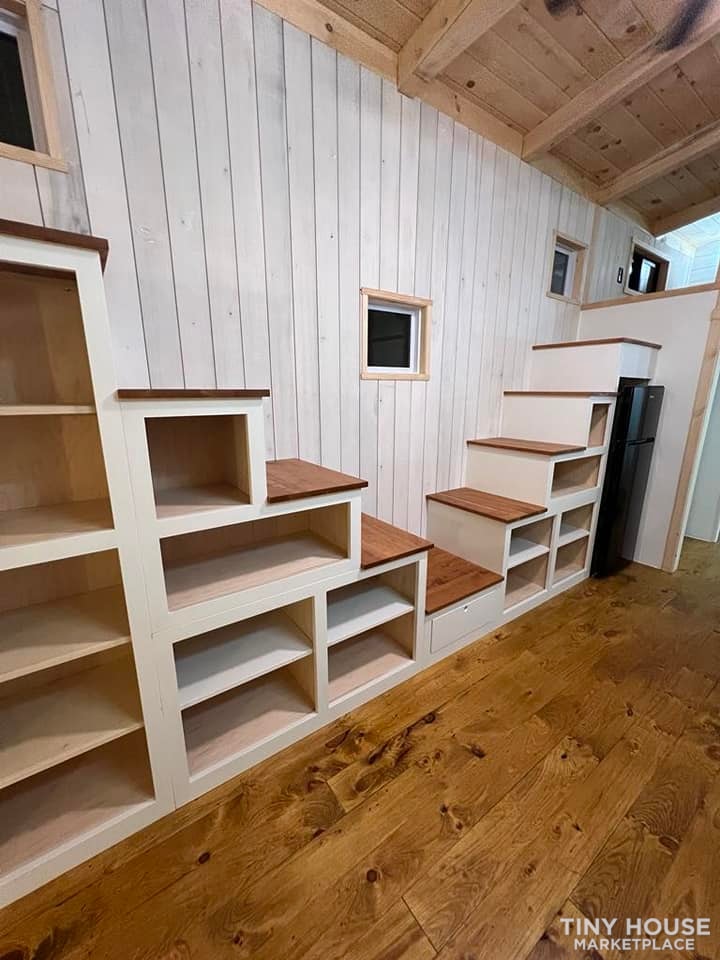

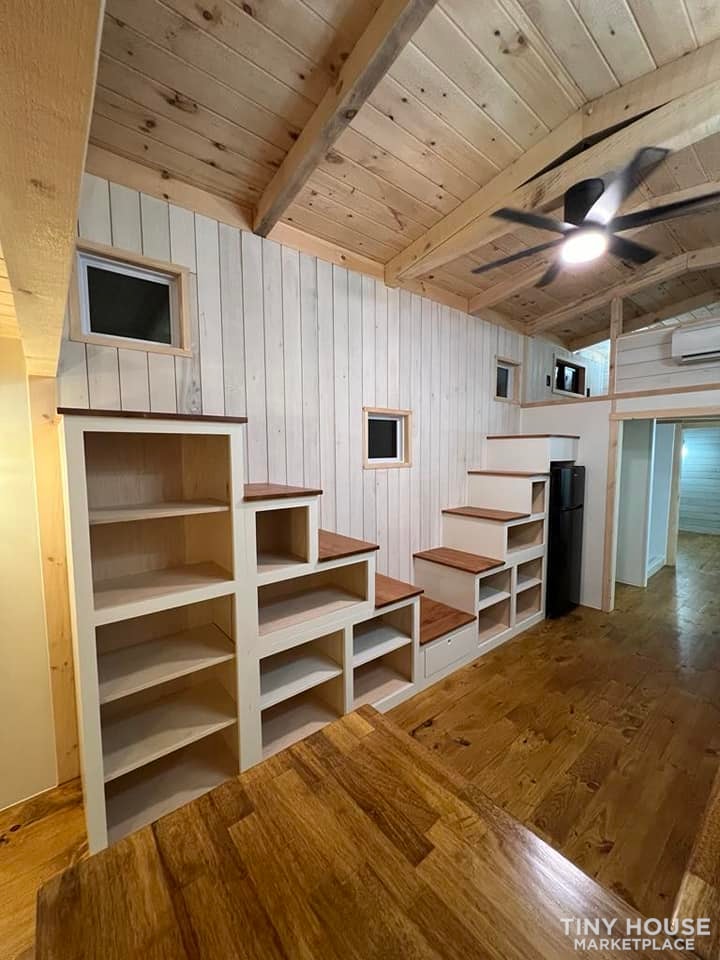

Custom Stairs to sleeping loft. Built in Cabinets.

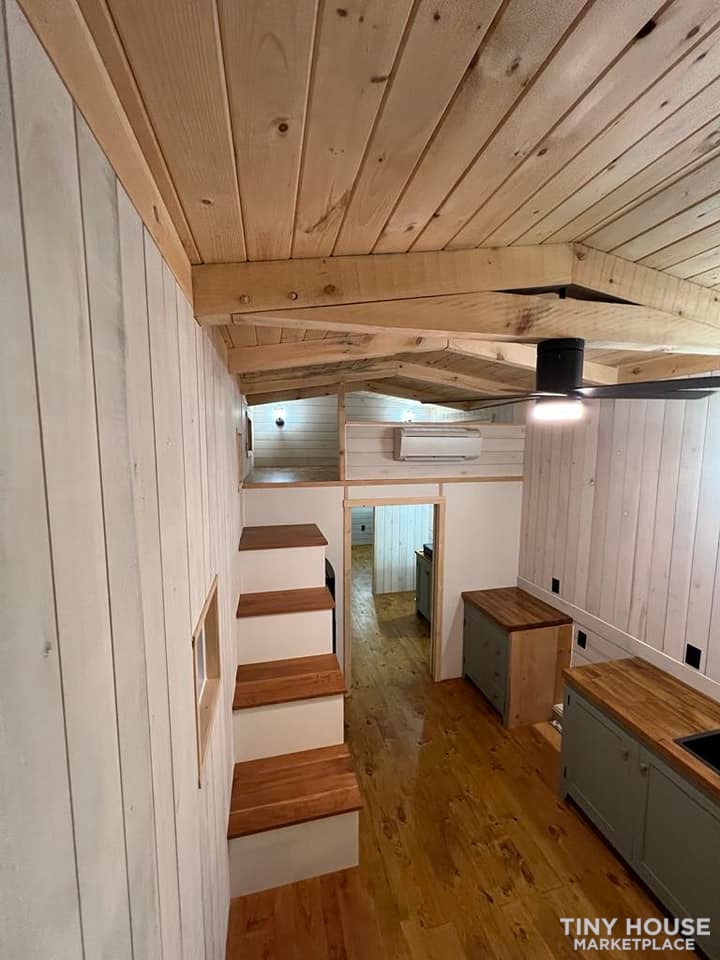

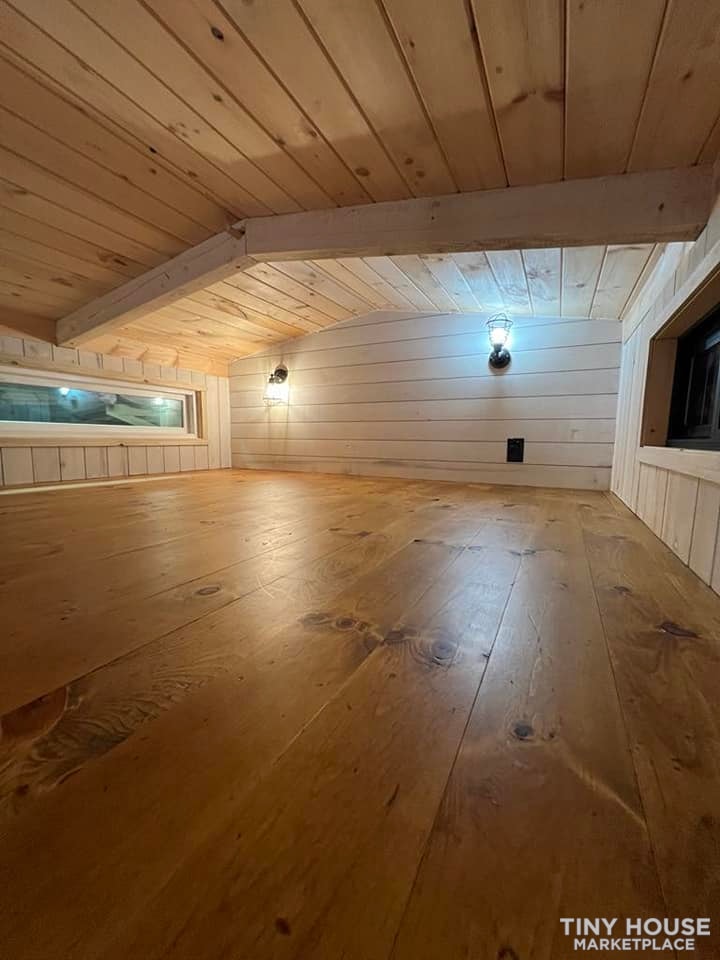

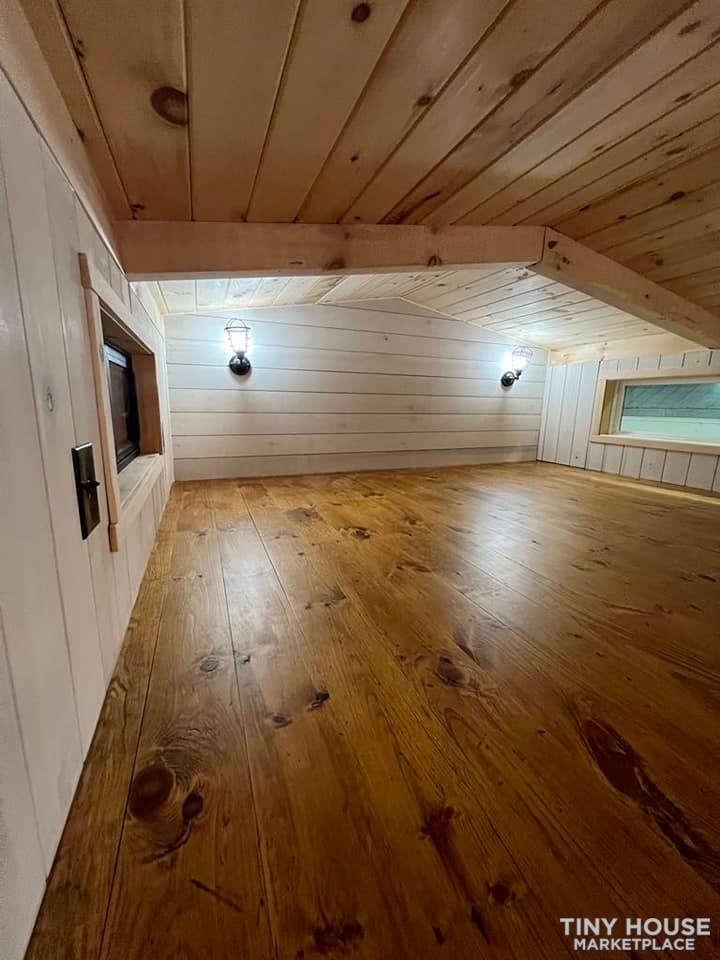

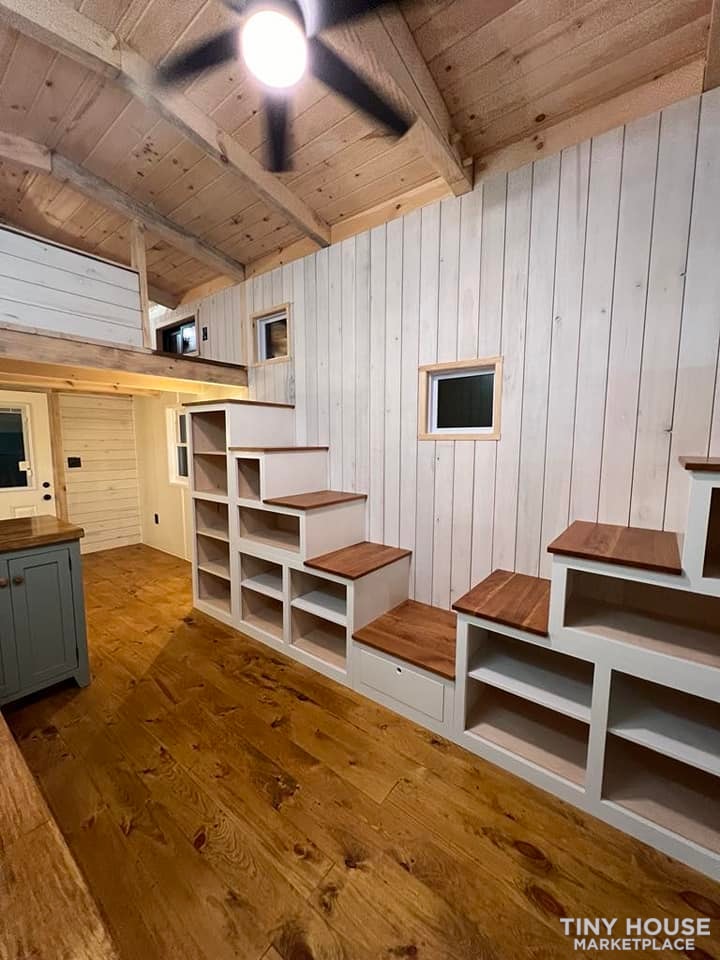

Double Stairs to two lofts
1x6 tongue and groove ceiling
1x6 shiplap pine. Painted white

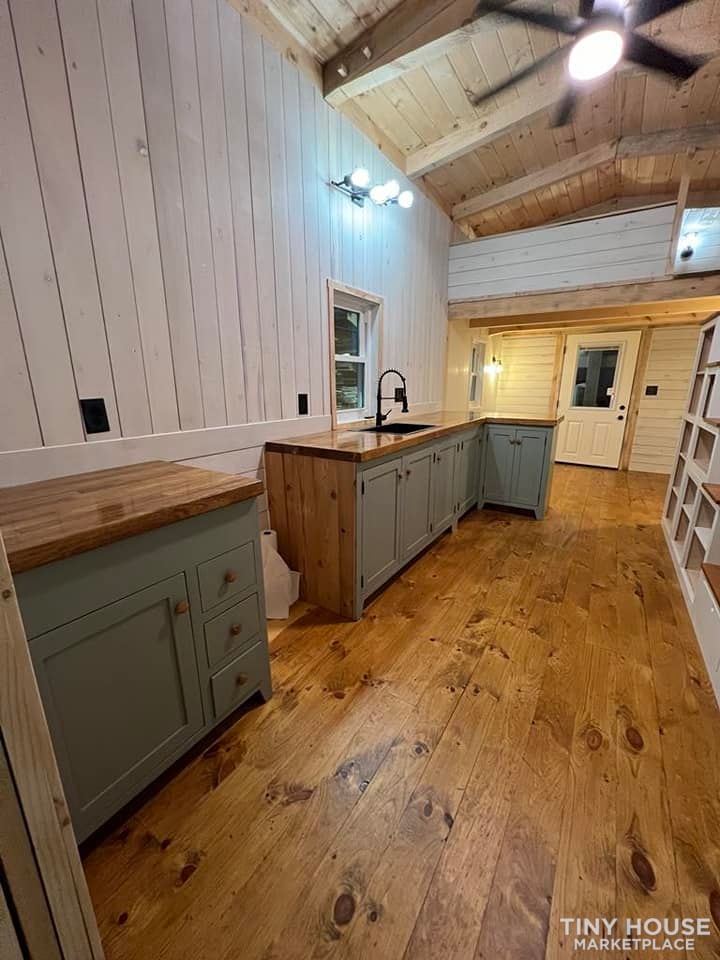

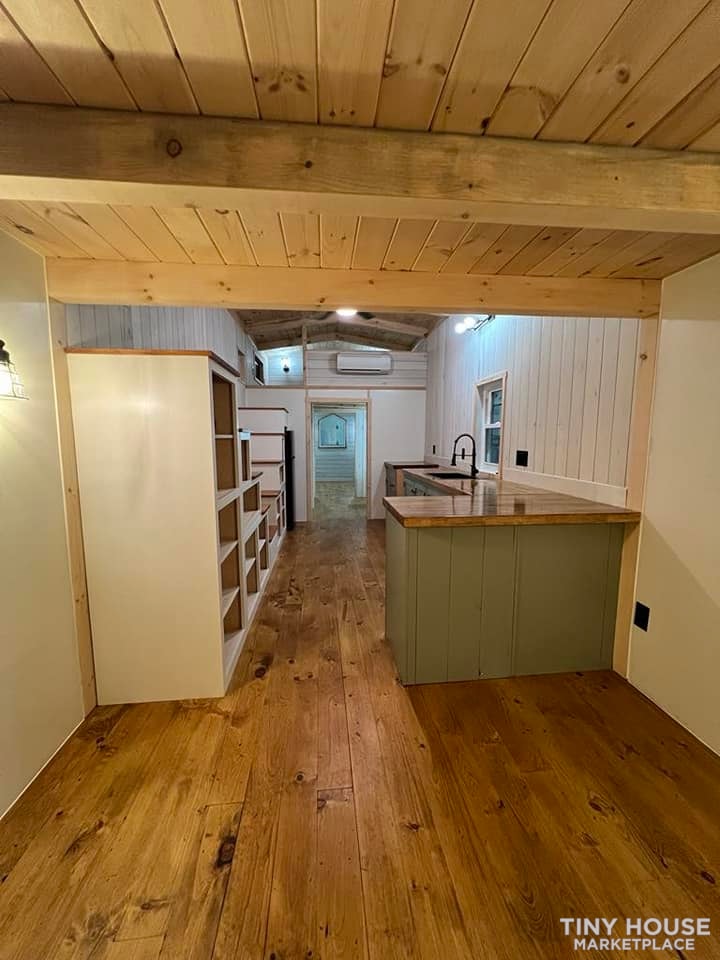

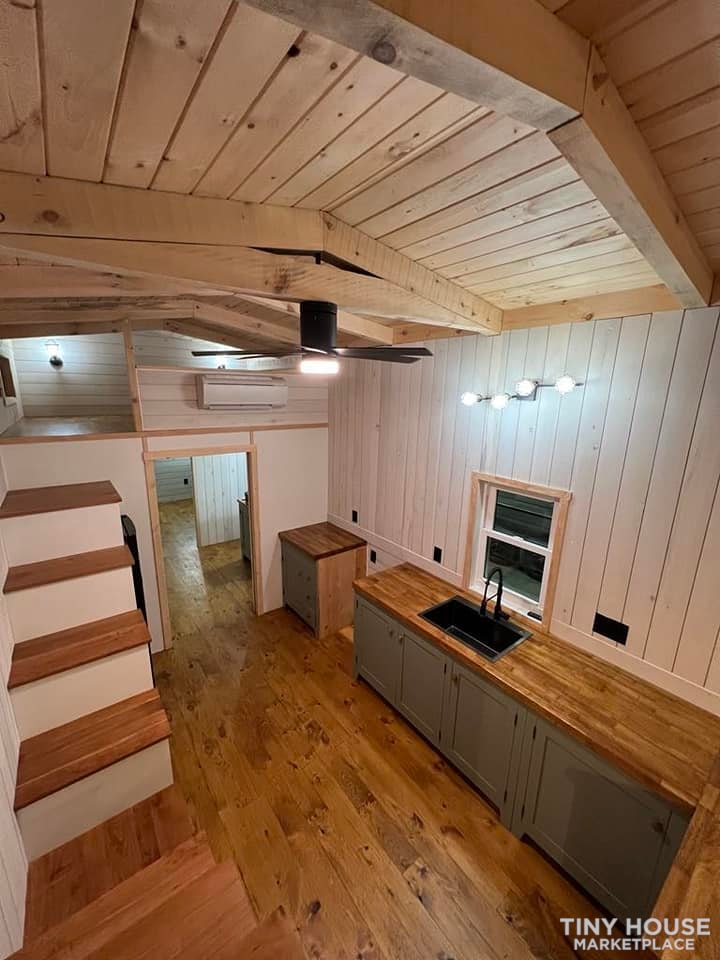

Butcher block countertops
Track Lighting and Sconces
Ceiling Fan

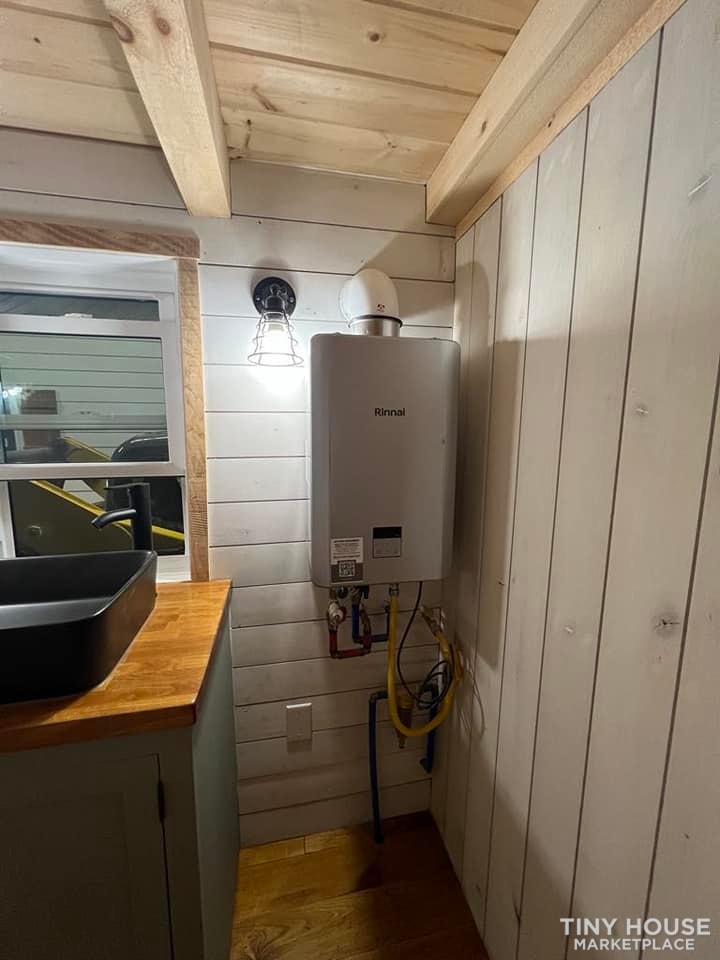

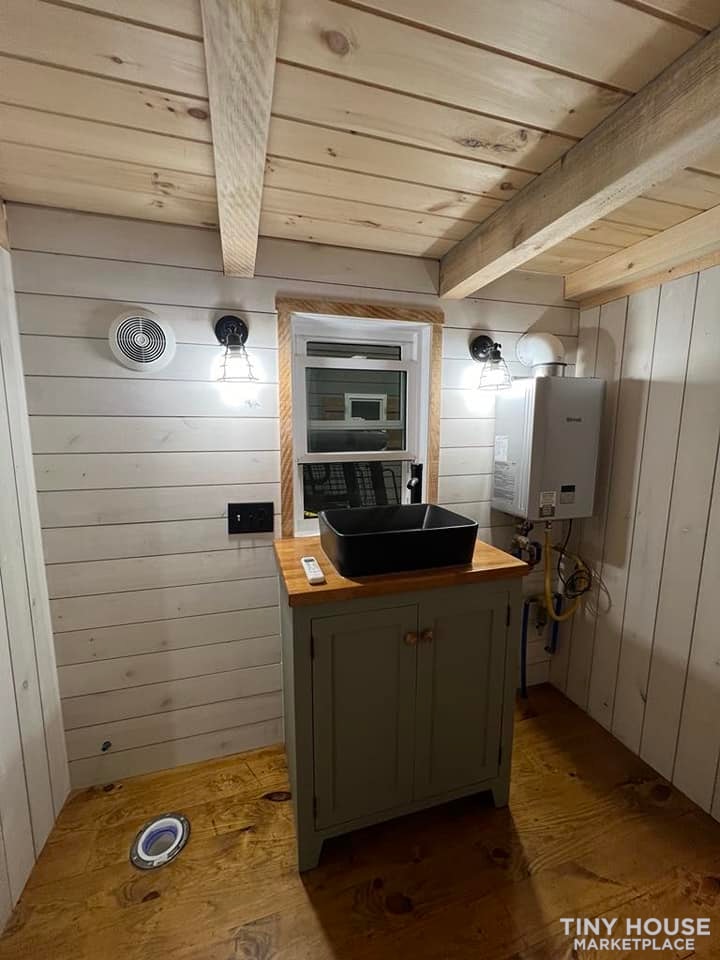

Propane On Demand Hot Water Heater (Rinaai)

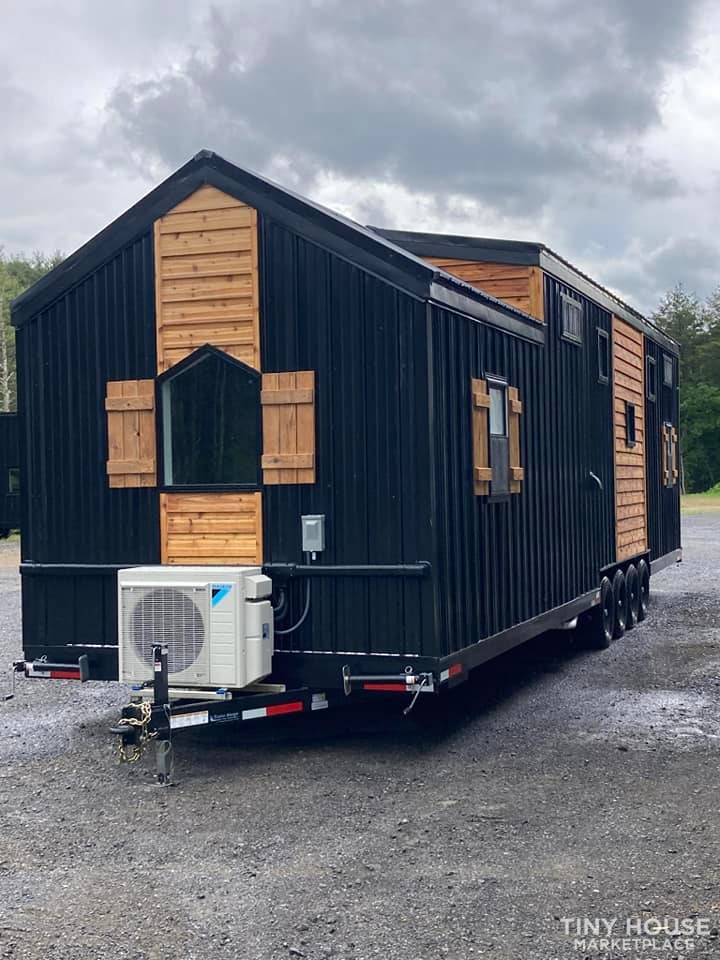

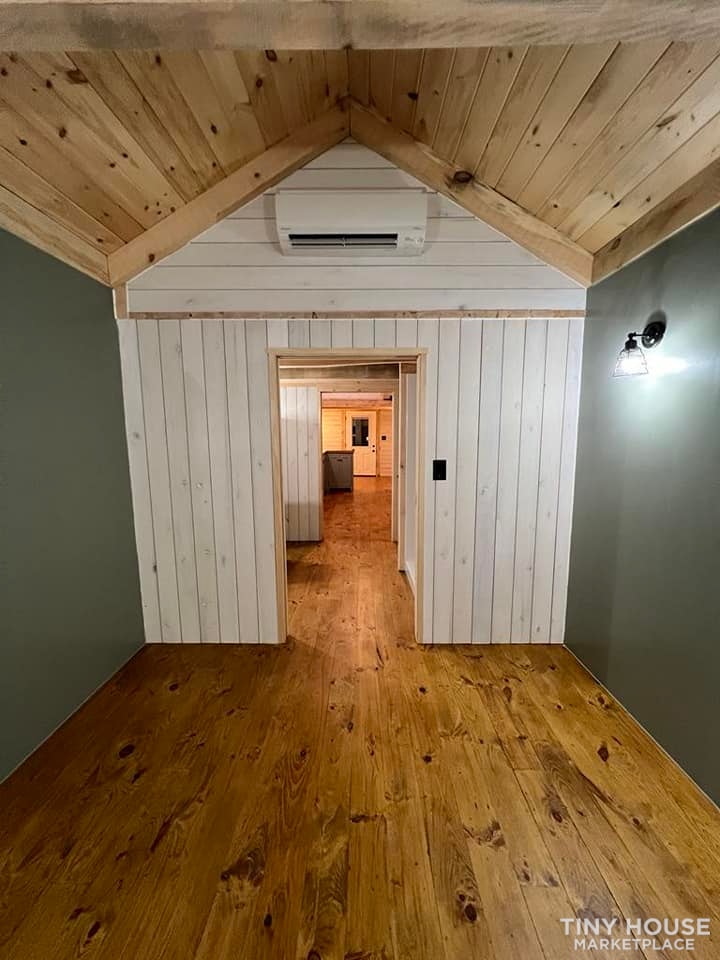

18,000 btu mini split (Heating, and AC) Two Heads inside. One in bedroom one in Living area
LP Gas Range Oven Combo GE

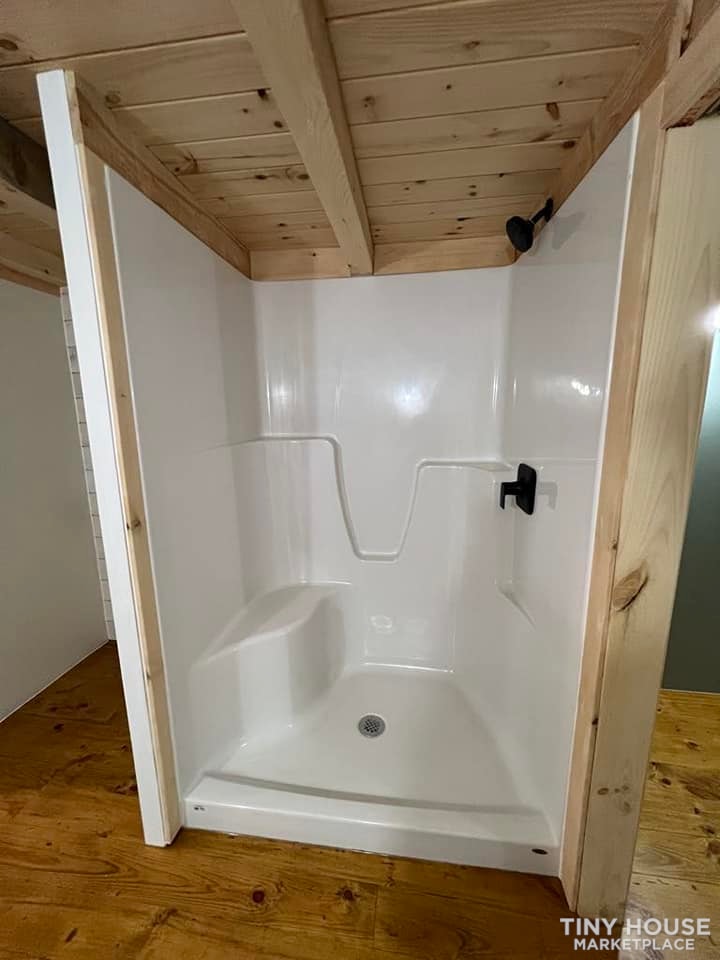

48 in Shower with Bench
24 in stainless steel sink with Black Faucet

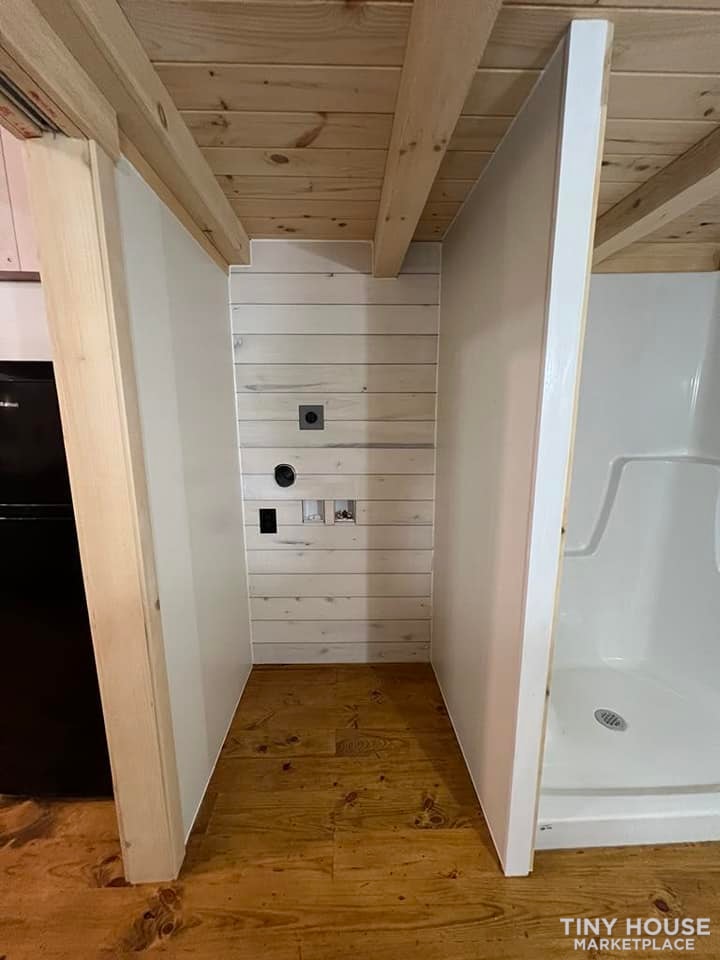

All utilities for Stackable Washer/Dryer
Flushing Toilet
Bathroom Vent
