24ft x 8ft custom built rustic tiny home on wheels

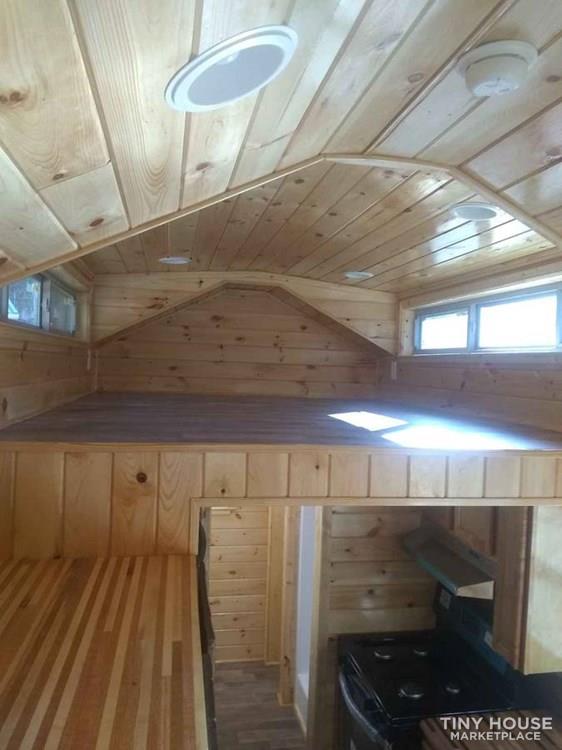

new SonBuilt custom 2019 24ft x 96” wide 14K HD Tiny house trailer with (2) EZ-Lube HD 7K Axles 2-Wheel Brakes,9 Gauge metal sheeting screwed down as a belly pan.. 2x4 framed walls placed 16 inch on centers and secured by prewelded anchor bolts to the framing. 1/2 inch CDX plywood on exterior walls that are glued, nailed and screwed. 2x6 framed roof rafters placed 16 inch on centers. The roof rafters are covered with 1/2 inch CDX plywood with a sythetic underlayment as well as a ice and water shield. There are also collar ties on the roof rafters for roof stability.Walls are insulated with Rock Wool Comfortbatt insulation and has an r-value of 15.Ceiling is insulated with Rock Wool Comfortbatt insulation and has an r-value of 30. It also has an exterior layer of 4 inch Polystyrene Foam Board Insulation with an additional r-value of 20. The roof has a total r-value of 50.Interior walls are covered with 6 inch wide tongue and groove knotty pine. 50 amp rv/shoreline inlet and 50 amp residential breaker panel. Residential electrical wire and components installed.Plumbing drain system (ABS) is gray water water only with no holding tank. Plumbing supply system is pex only. 30 inch compact shower.Appliances: Propane tankless hot water heater, full size propane range, full size electric refrigerator. Plumbed and wired for a compact washer/dryer combo unit.3/4 ton Blueridge ductless mini-split heat pump. Custom stairs that contain 45 cubic feet of storage space. Custom hardwood stair treads sealed with 6 layers of polyeurathane. Kitchen counter top is custom made hardwood butcher block (Red oak, white oak, maple and walnut) conditioned Custom cushoned seating bench with 9 cubic feet of storage.Two coats of exterior sealant (UV protectant) applyed. Custom built trailer tongue storage area. Set up to house two 20lb propane tanks with automatic change over from empty tank to full tank.
