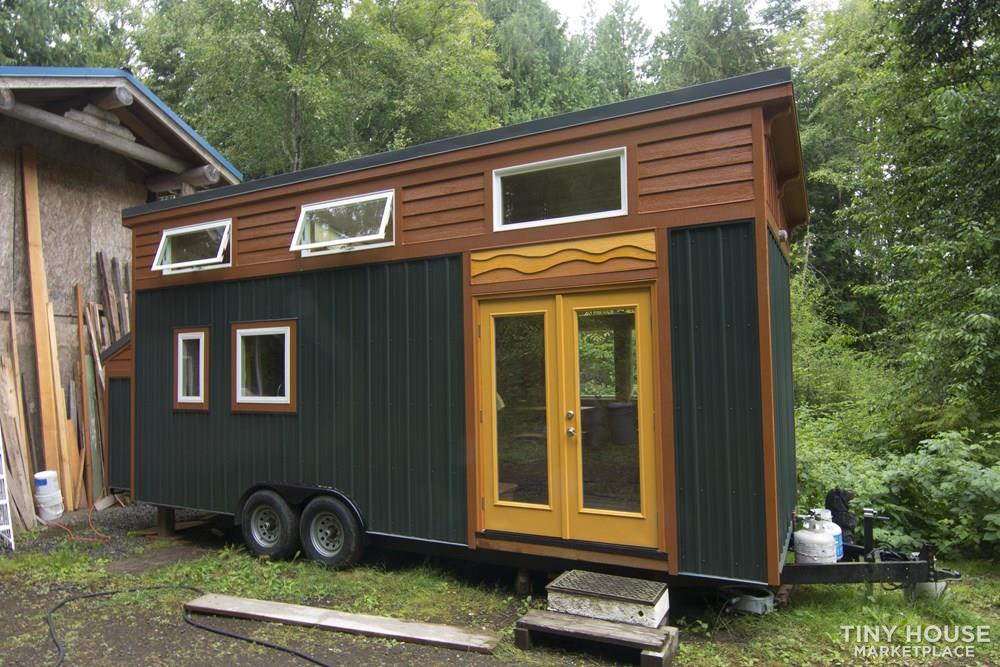

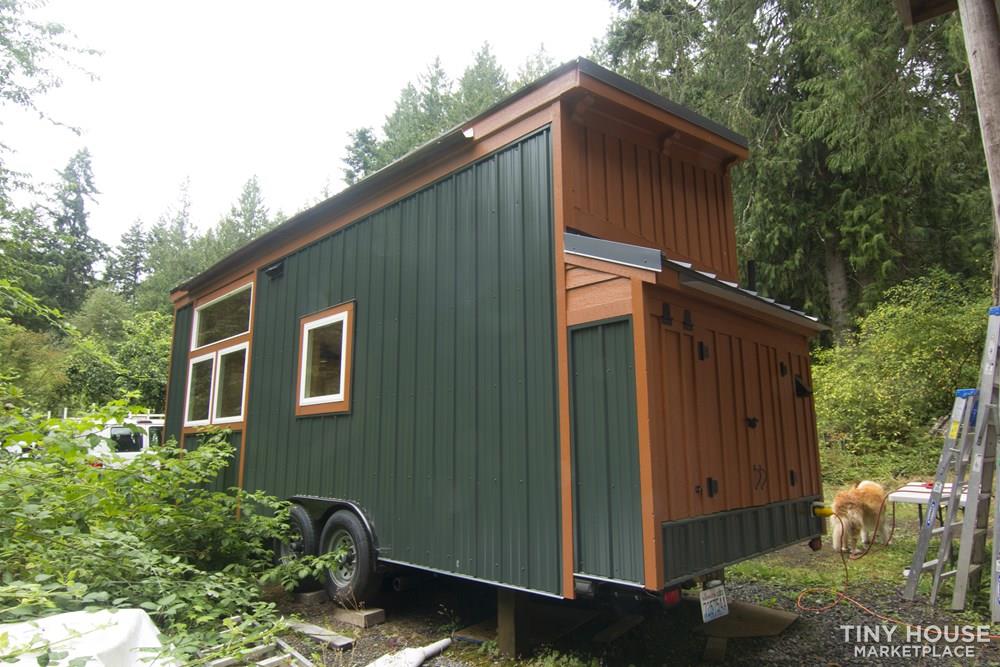

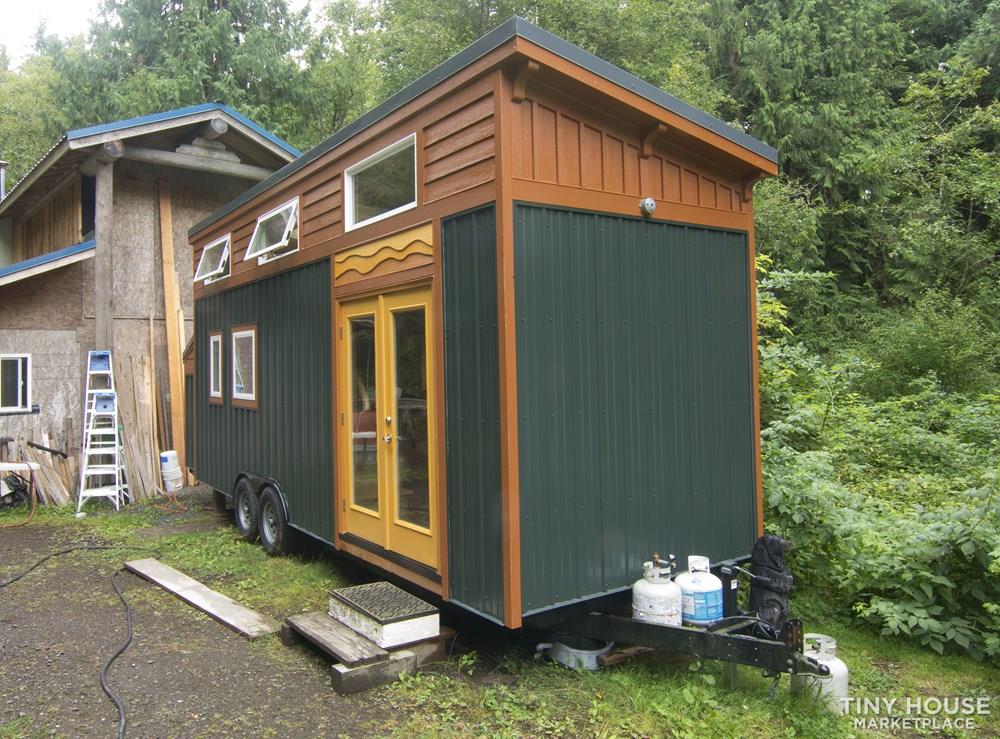

Exceptional Quality 8' 6" X 26" Custom Tiny Home on Wheels

Trailer Frame & Floor: Custom-built 24' bumper-pull utility trailer with the R-18 Foam insulated sub floor. Trailer includes 2 - 7,000lb drop-axles, adjustable hitch, electric brakes, electrical wiring run inside a conduit, radial tires. The floor system consists of water barrier, ½” marine plywood, 2X4 DF floor Joists, R-17.5 Rigid insulation, ¾” T&G plywood subfloor. Walls: 4 ½” R-19 GPS Structural Insulated Panels. Roof: 6 ½” R-29 GPS Structural Insulated Panel (see Premier SIP brochure for details). Window package: Milgard: white, energy star north-central argon, U factor .27 Roof system: Grace Ice & Water Shield over roof sheathing with ASC SKYLINE 12" 26GA Slate Gray painted metal roofing 2/12 pitch. Siding system: Benjamin Obdyke Hydro gap house wrap, ASC NORCLAD xl 29ga. Forest green metal, Painted Spruce exterior trim, Smart Side lap siding. Exterior Door: 5/0 Full Light low E fiberglass, Oak sill, stainless hinges. Plumbing: Supply: Pex tube sloped for (winter) draining with copper manifolds, brass ball valves, chrome stops, Drain: ABS with cleanouts and venting to residential code, Gas: ¾” Black Iron gas pipe, Brass gas shut offs for cooktop oven & hot water heater. Custom 24Volt LED Dimmable lighting throughout perfect for solar power installation. Ceiling: ¾” T&G Pine, Beams & Trim: Locally sourced, Milled, & Kiln Dried Douglas Fir, Loft: 1 ½” X 5 ½” T & G Spruce Decking with ¼” Birch plywood floor, Cabinets: Birch Plywood, Douglas Fir frame Custom Built, Counter Tops: Formed laminate on kitchen sink side 1 ½” Butcher Block dry side. Tile top in bath, Bathroom Floor: commercial grade Vinyl, Main Floor: Waterproof Laminate weathered wood, Heat: Cadet 1000 watt kick space heaters on thermostats (1 in bath & 1 under stair cabinet) Bath Fan: FR series 100 cfm inline unit located in mechanical room on timer, Range Hood: AKDY 24” Black Stainless 58 CFM 3 speed with light
