This home was built by high school vocational students from Knott Co. Area Technology Center, with grant money from KVEC (Kentucky Valley Educational Cooperative). This is a self sustaining grant, and proceeds from the sale of this home will be put back into the program for next year's build. All work was done under the supervision of licensed instructors. We have built 22 homes in the last 5 years.

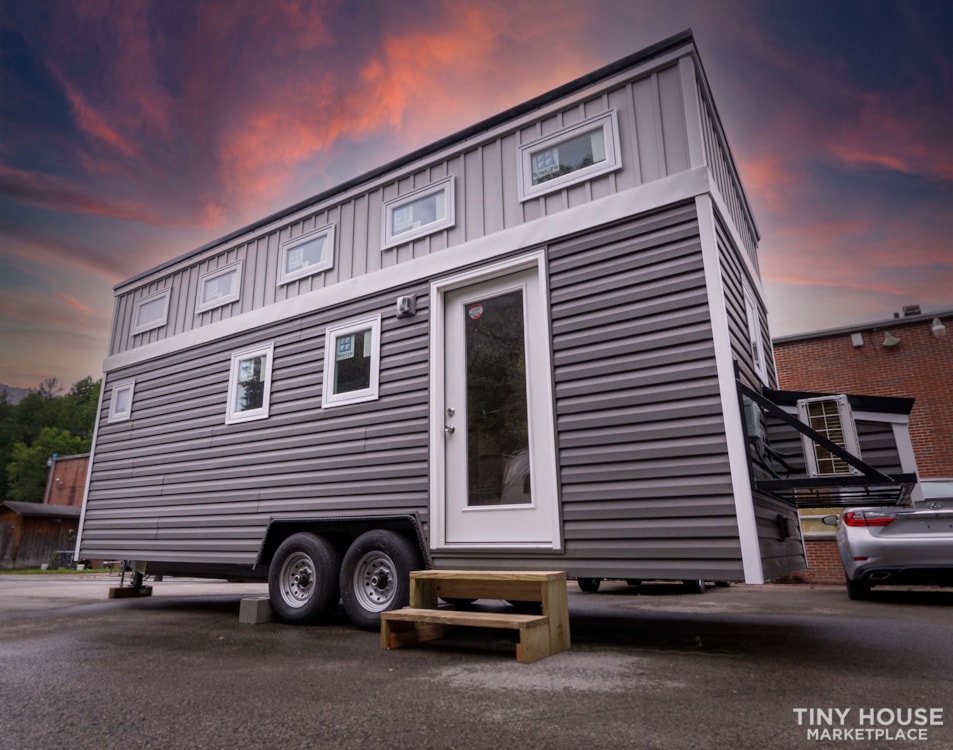

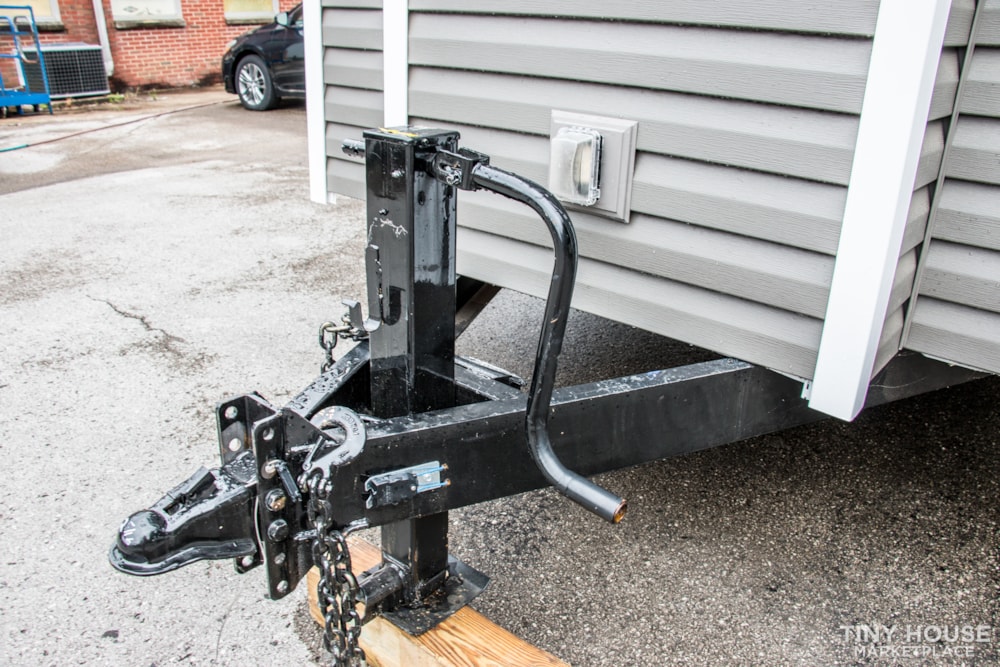

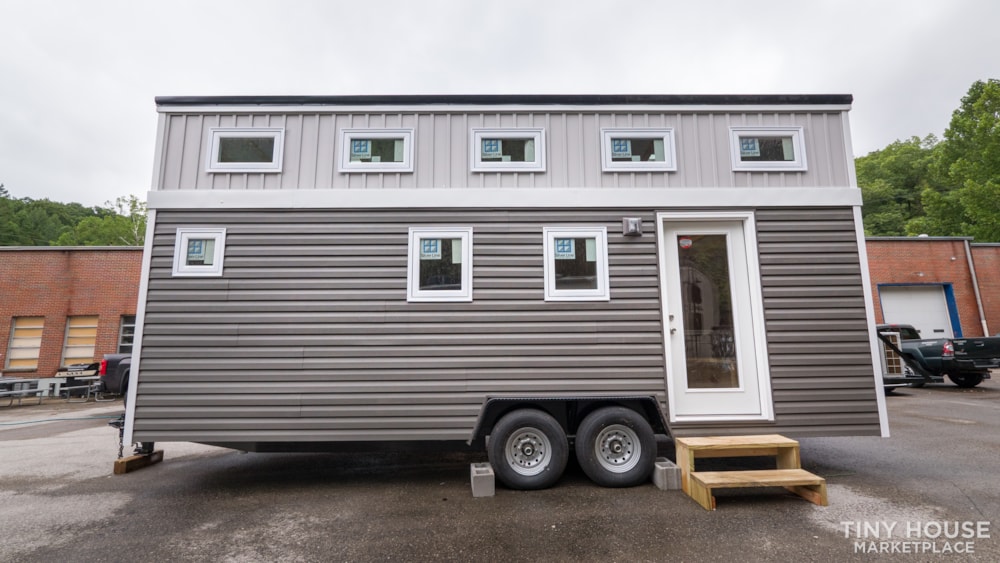

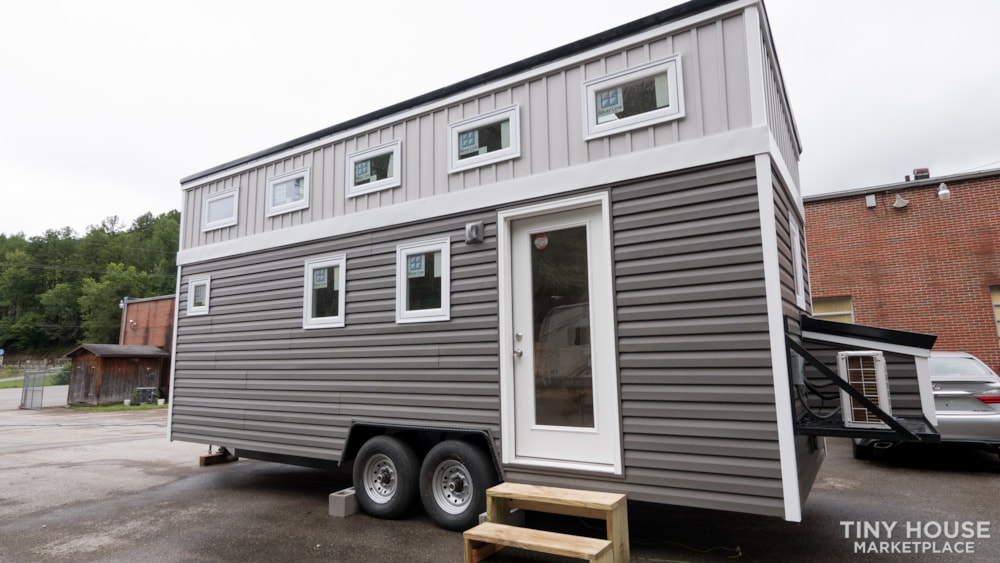

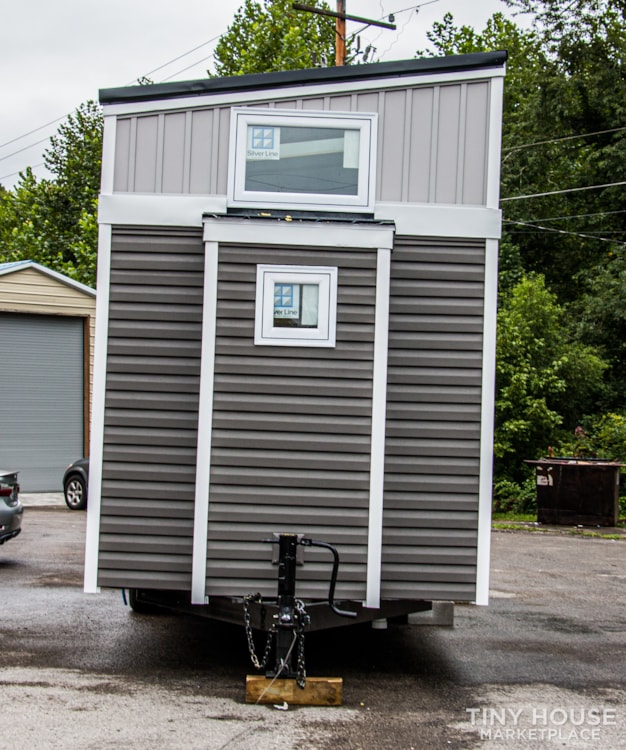

This Tiny House is built on a DOT legal trailer, with two 7,000 pound, brake assisted axles. It is 102” wide 24’ long (not including hitch) and 13’4” high.
2x4 wall framing, 2x6 roof framing
R- 19 insulation in floor and ceiling
R-13 insulation in walls
Two tone grey Vinyl siding
Black metal roof

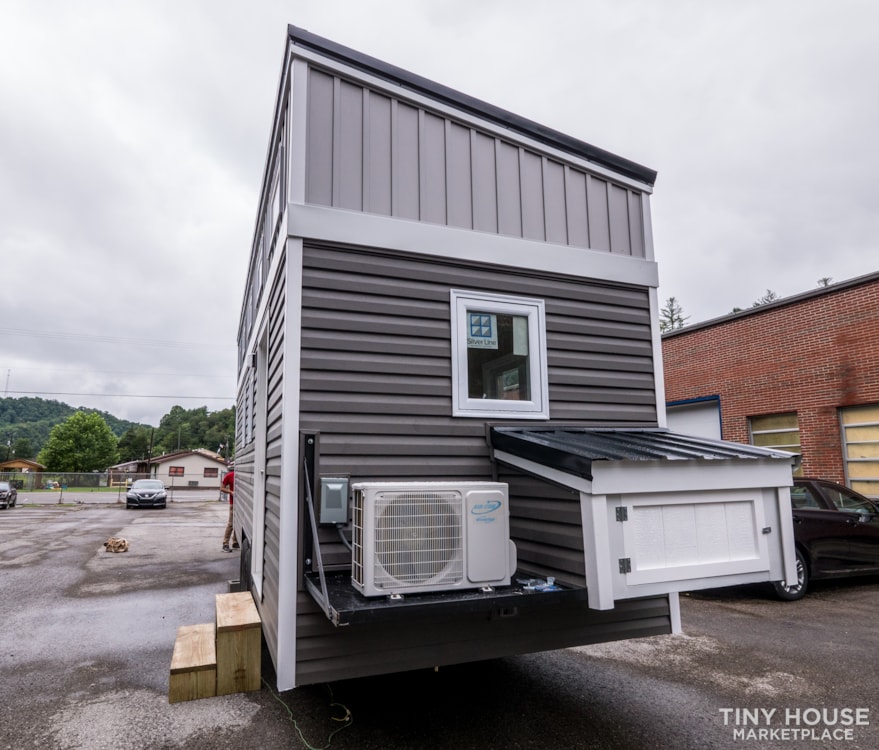

Exterior storage box for solar panel batteries
Anderson Silver Line windows – 11

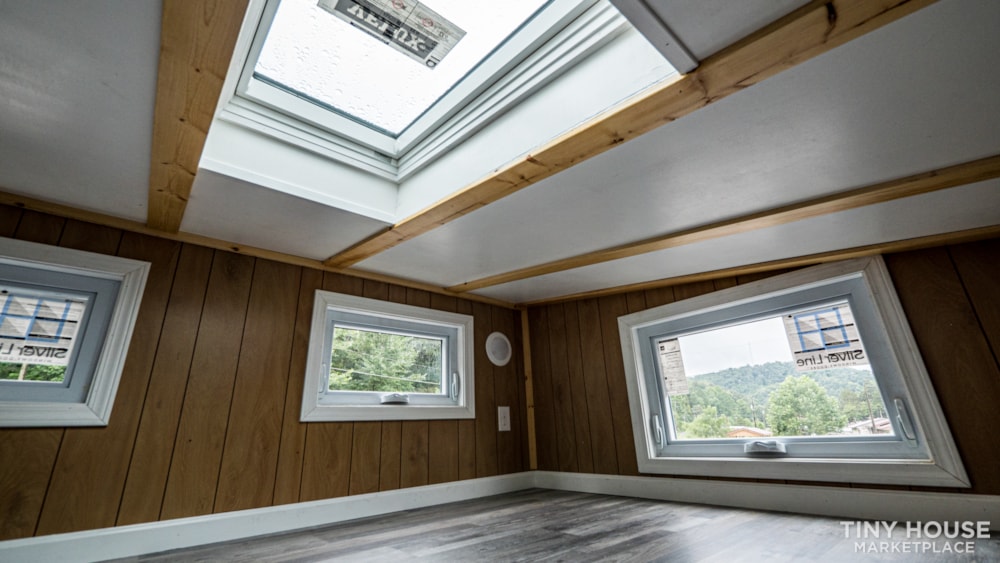

Two skylights, the sleeping area one opens.
Full length glass door
Sleeping area window is an egress window

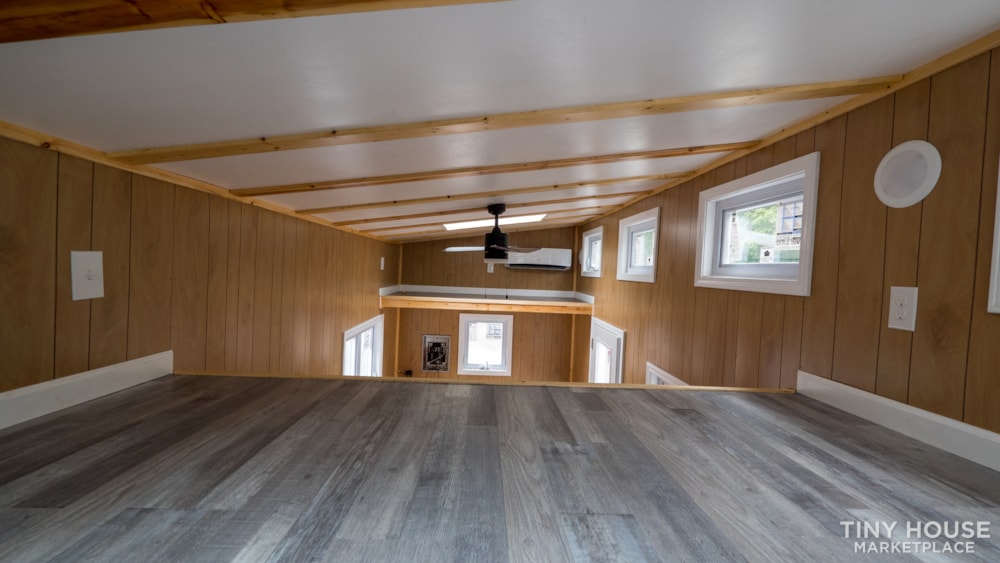

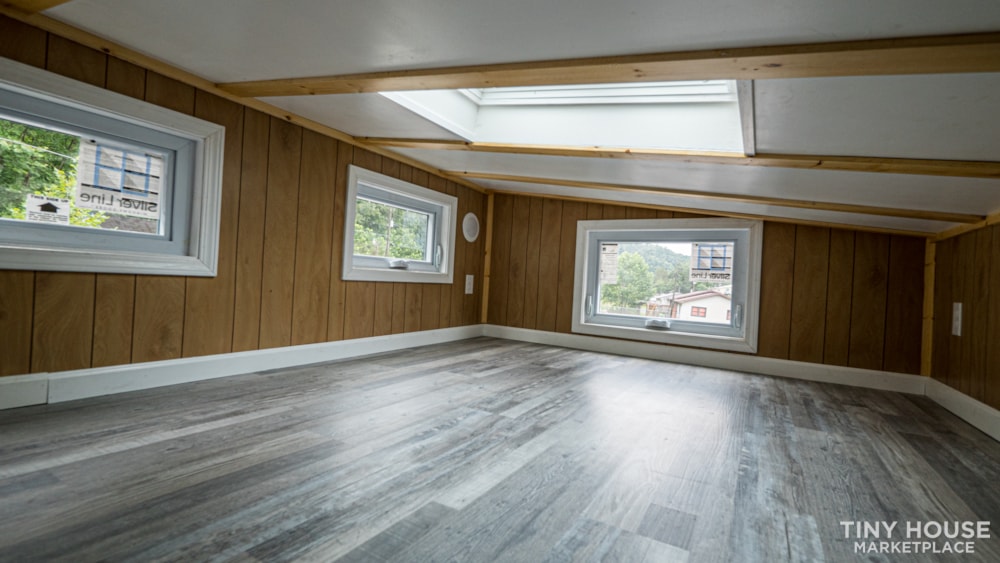

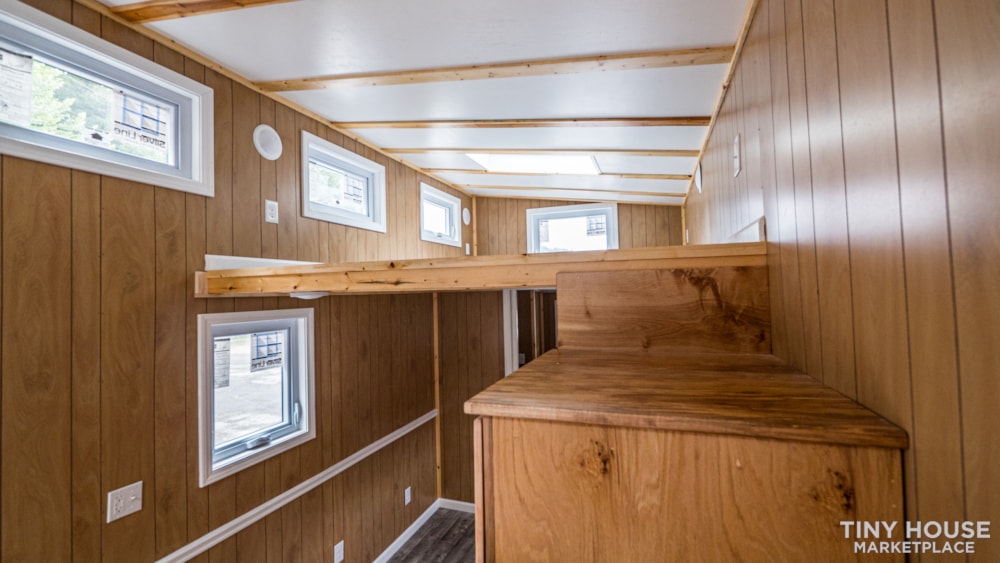

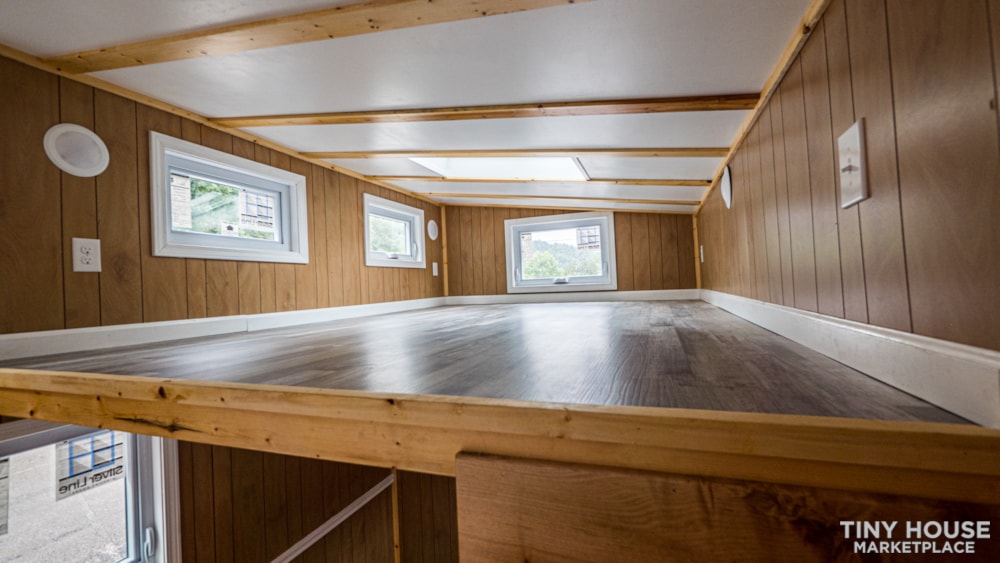

Sleeping loft is approximately 8’ x 11’
Storage loft is approximately 3.5’ x 8’

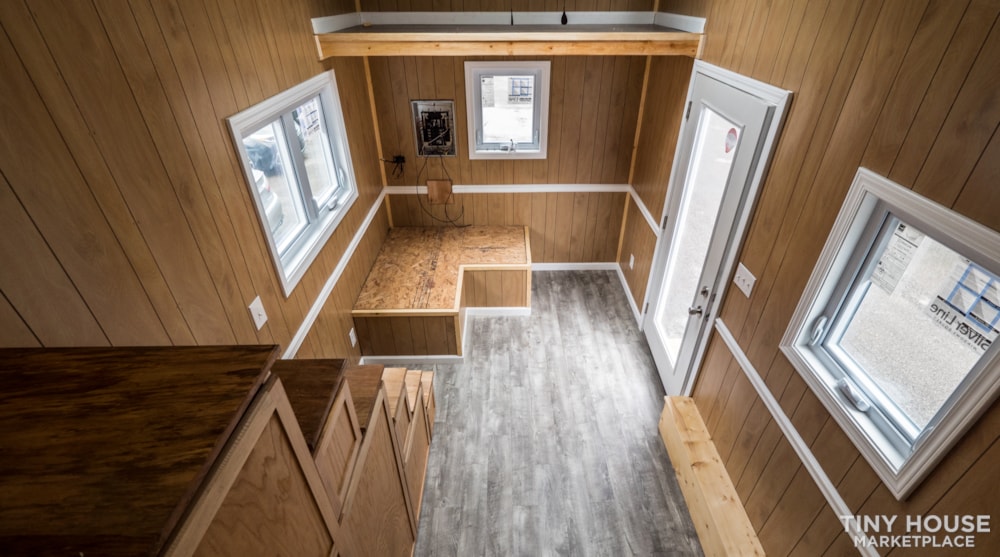

Waterproof vinyl plank flooring
Maple paneling

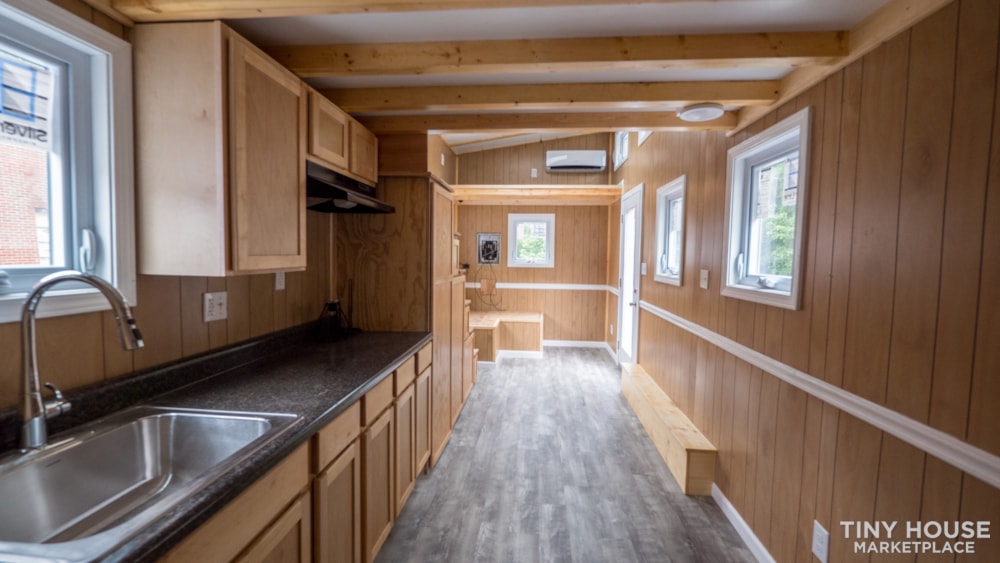

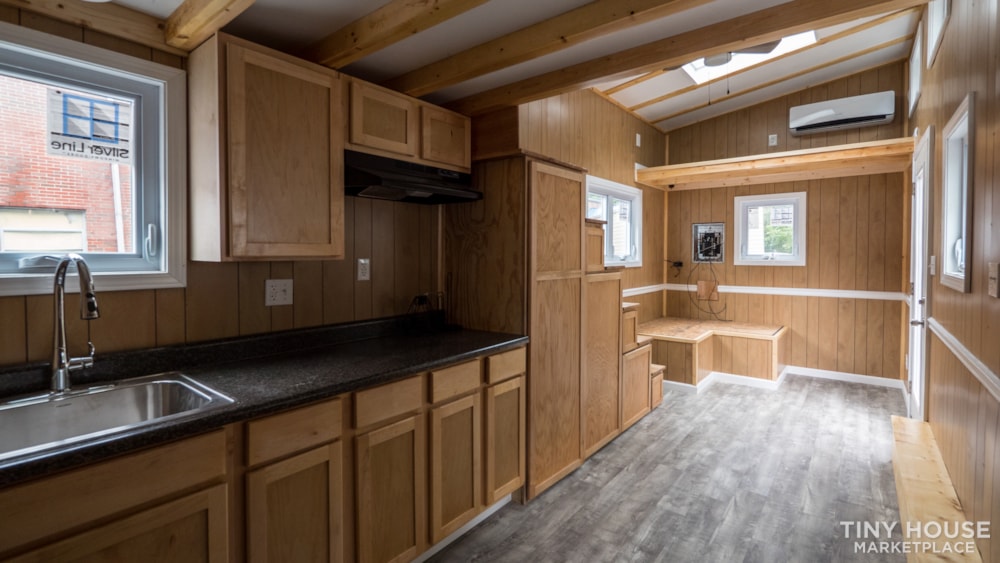

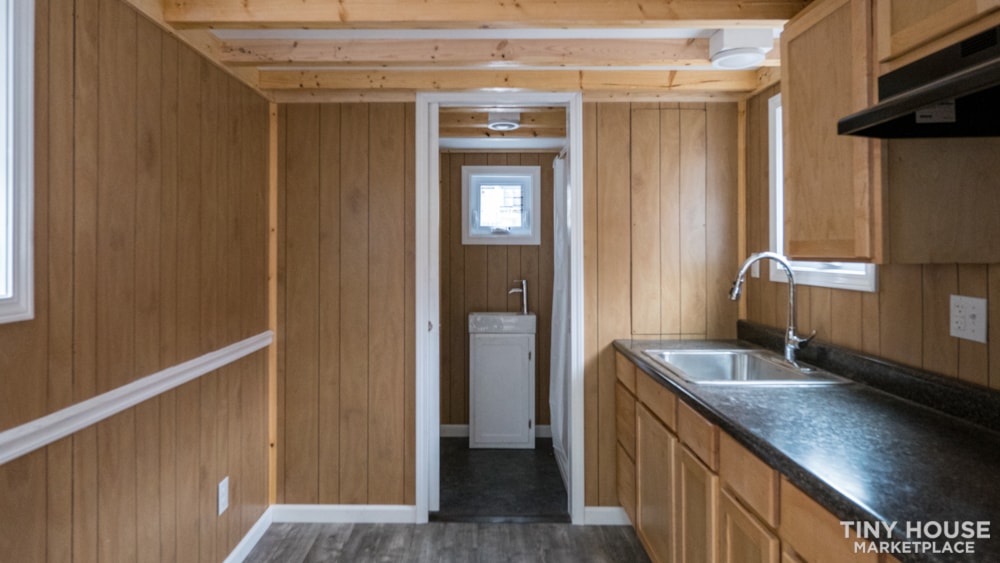

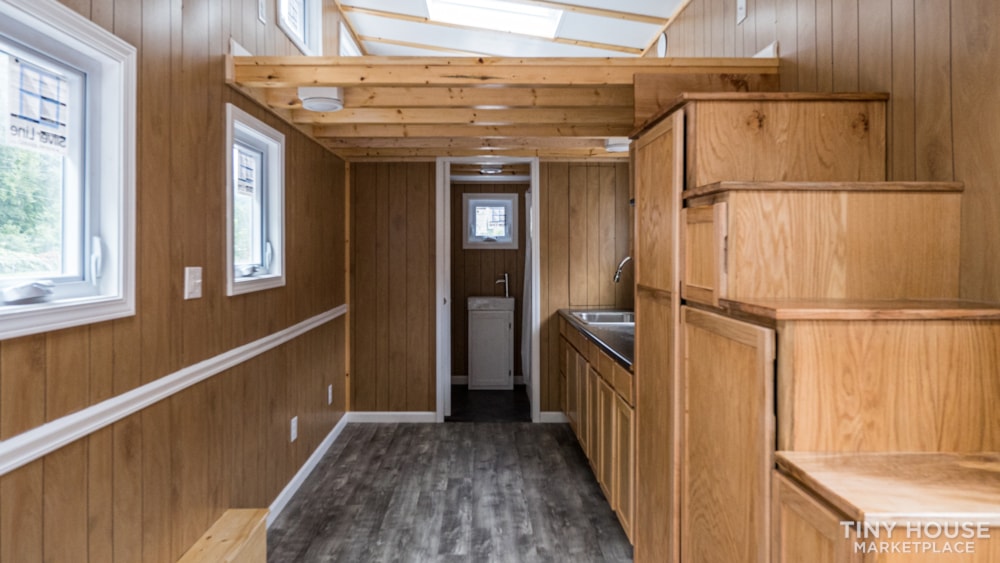

Maple cabinets
Storage in the stairs with room for hanging clothes

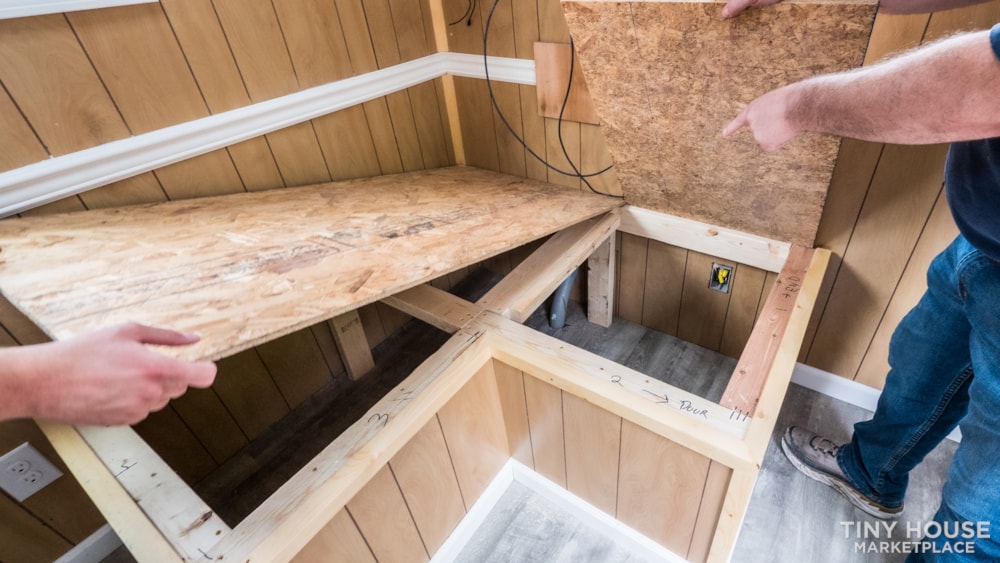

Bench seat storage (could be removed for addition of furniture preference)
Black stone look countertop

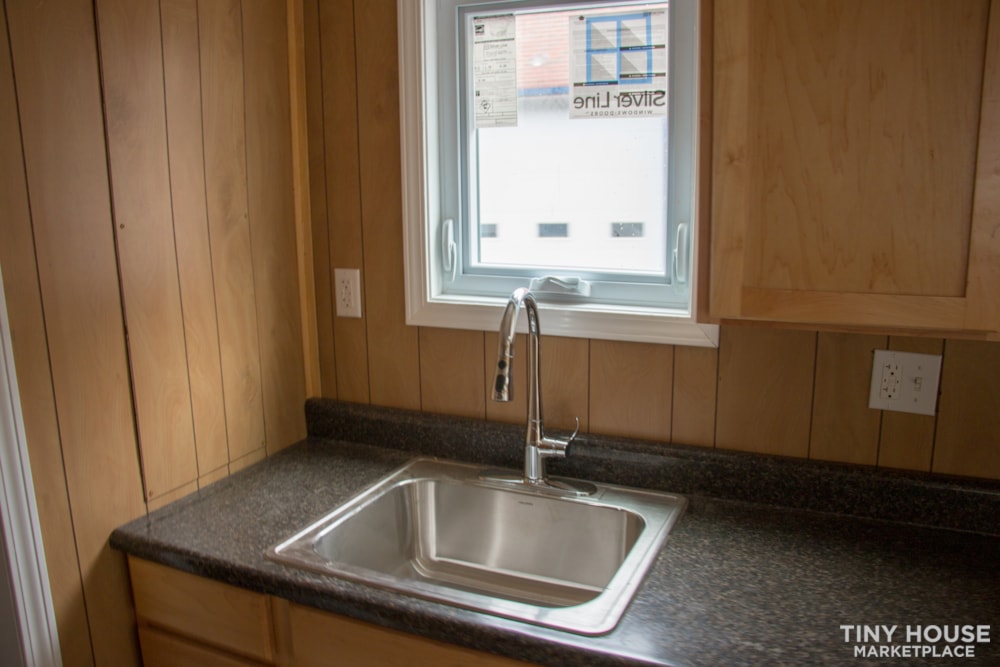

Single bowl kitchen sink
All LED lighting

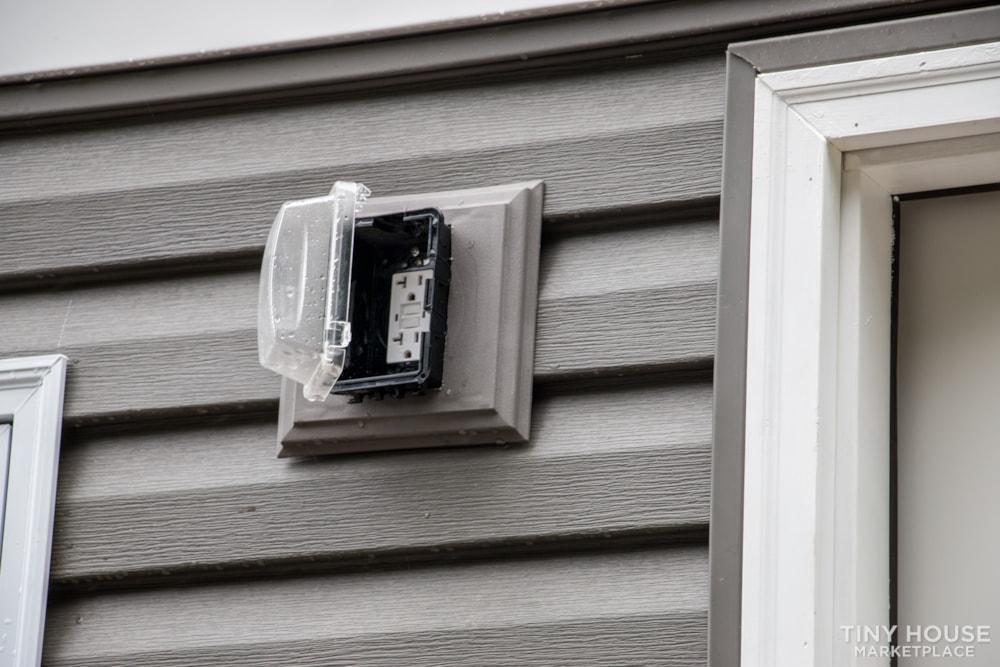

3 exterior GFCI outlets

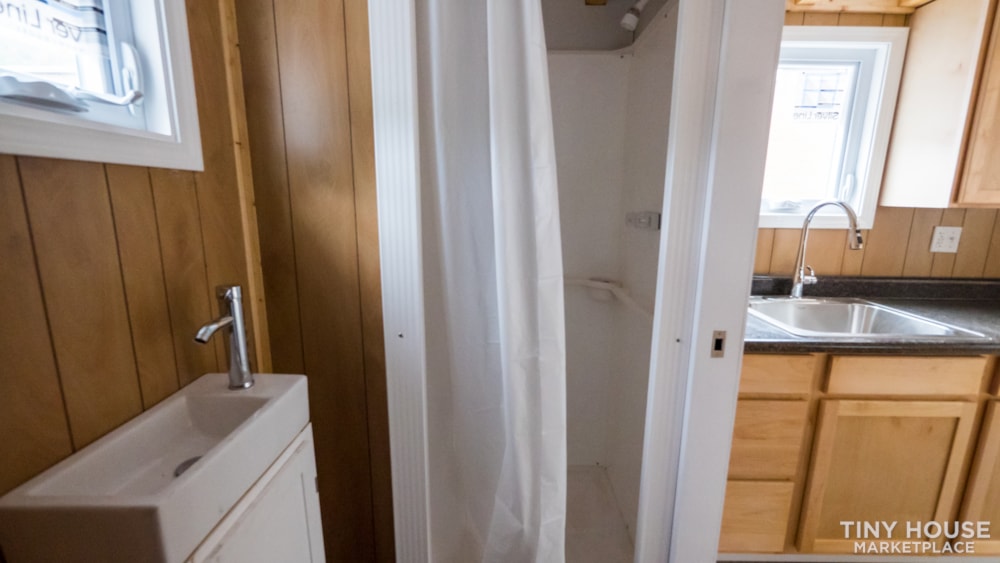

Shower is 32” x 32”

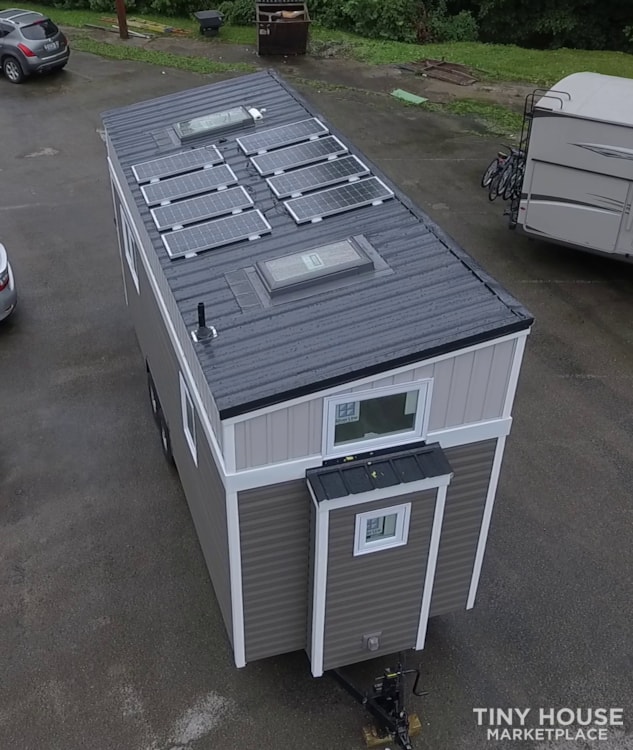

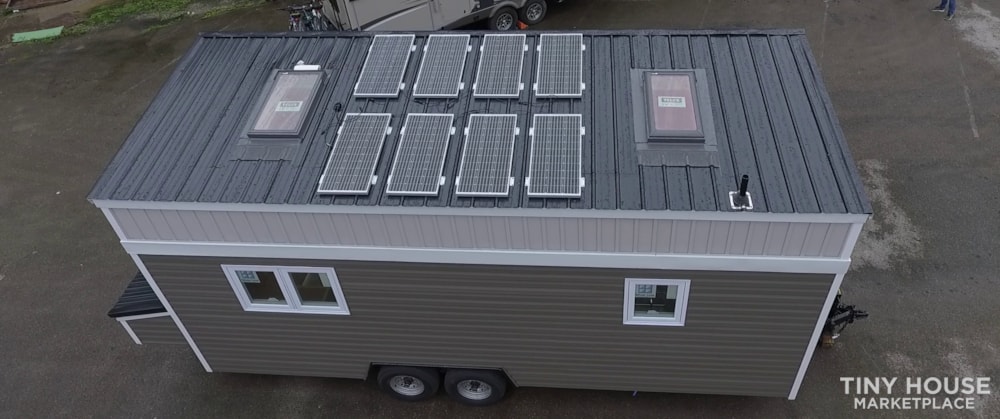

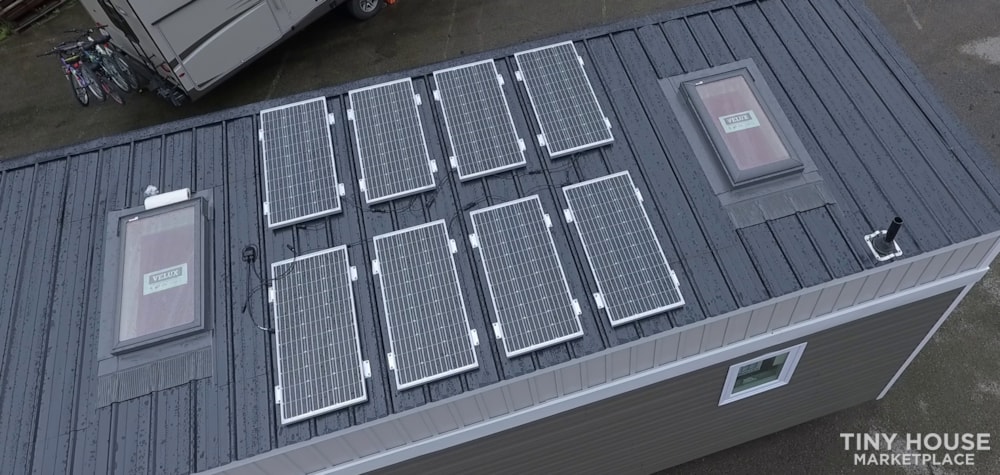

8 - Renogy 100 watt solar panels
Renogy 1000 watt inverter/charger
3 - 200 amp hour gel batteries
Renogy smart control box
100 amp breaker box Eaton

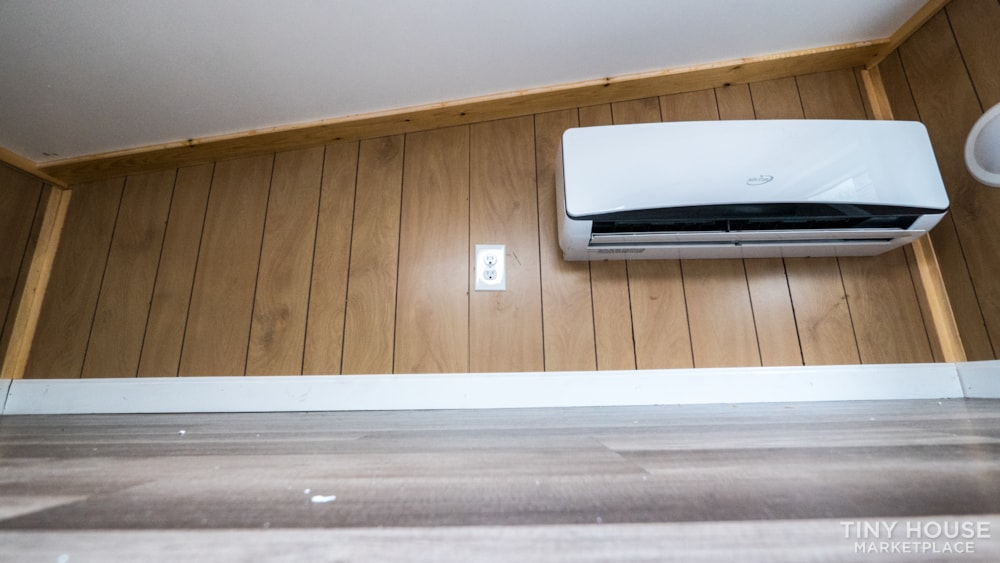

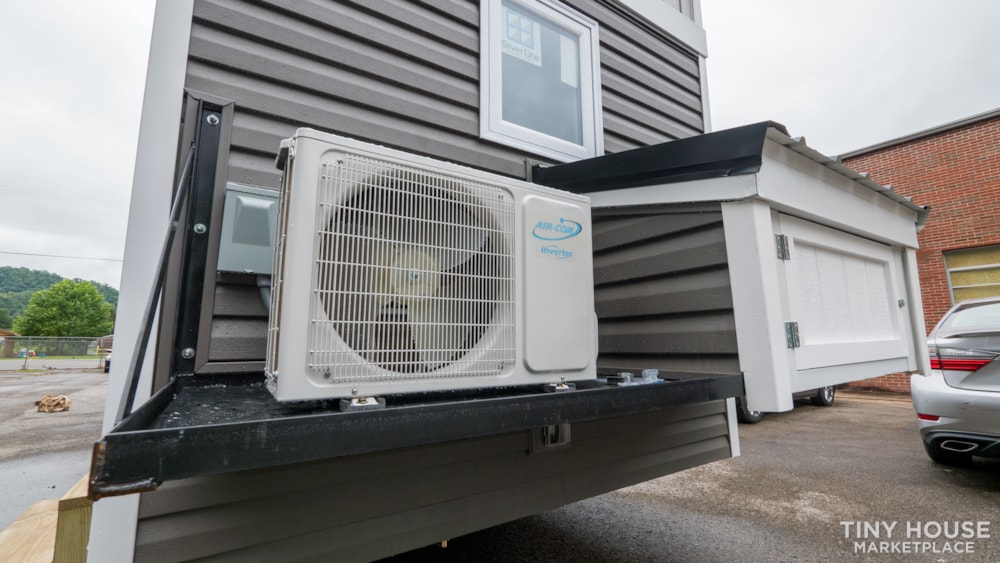

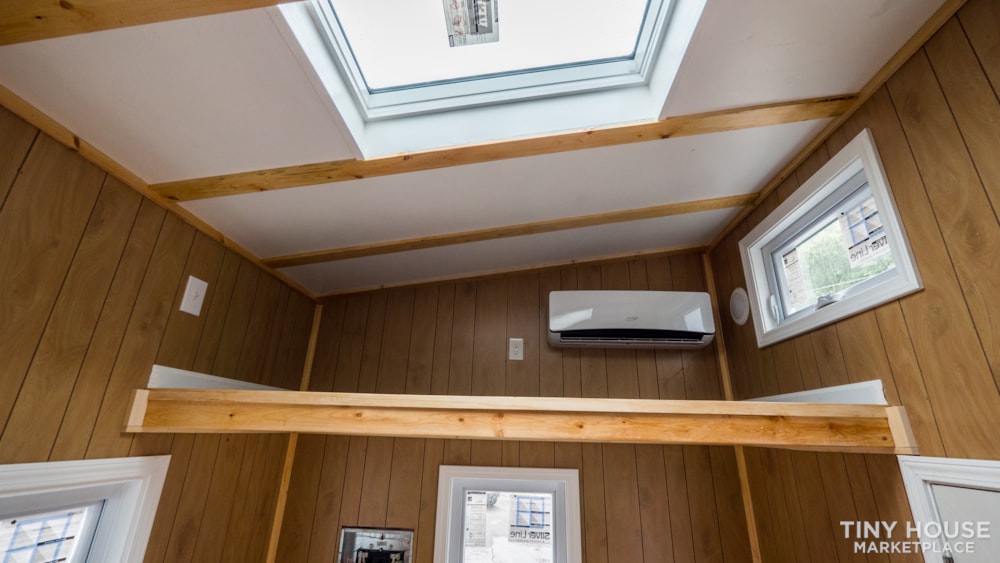

Air-Con 110v 12,000 btu cooling 13,800 btu heating mini-split

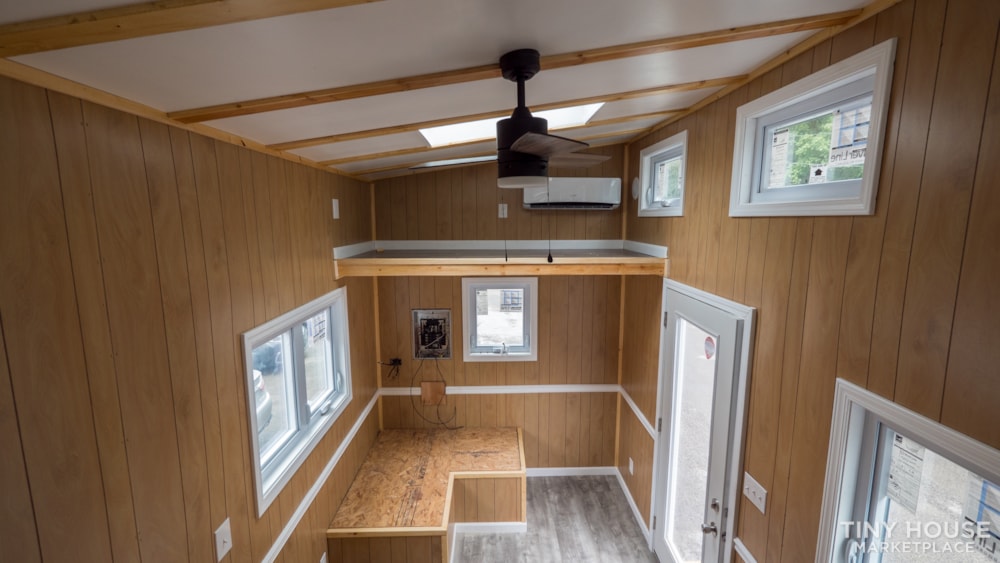

Harbor Breeze ceiling fan

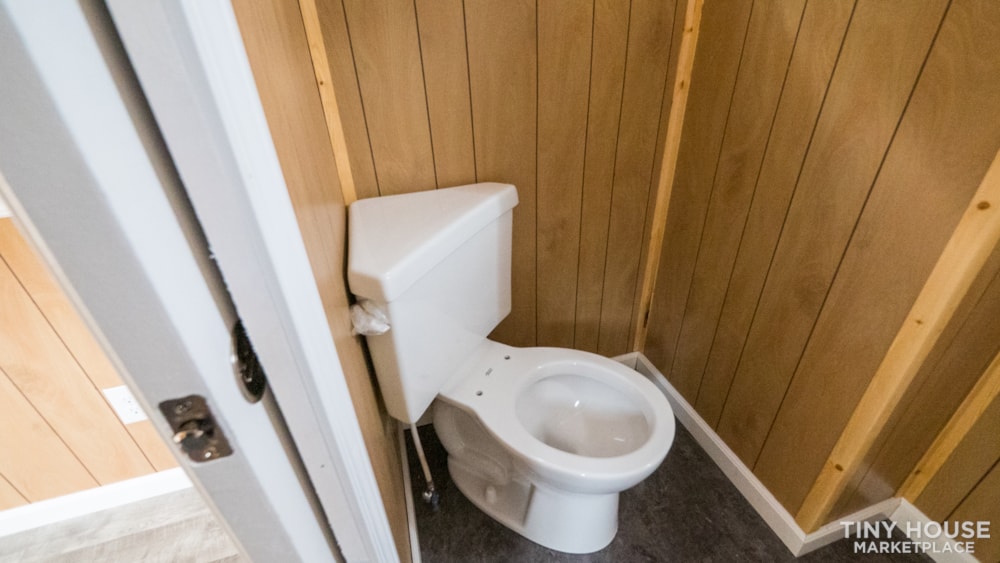

American Standard corner toilet
Broan range hood
EcoSmart 40 amp instant hot water heater 1.2 to 1.6 gallons per minute
All pex pipe plumbing
All wastewater drainage is 2in
All wastewater drainage hooked into a 3 in sewer downspout
Shower has a trap installed as does all drainage
1 water inlet
1 waste water outlet
contact:
Danny Vance
606-765-9743
